Project spotlight: medical facility
modernisation with the HS1
2025 05 05
In healthcare facilities, the reliable movement of internal supplies – ranging from general goods to various utility materials – is essential for day-to-day operations. A recent project involved the replacement of an unreliable lift in a medical institution, where the existing equipment suffered from frequent breakdowns and failed to operate as intended. The objective was to supply a modern, high-performance system that could be integrated into the old shaft without requiring structural changes.

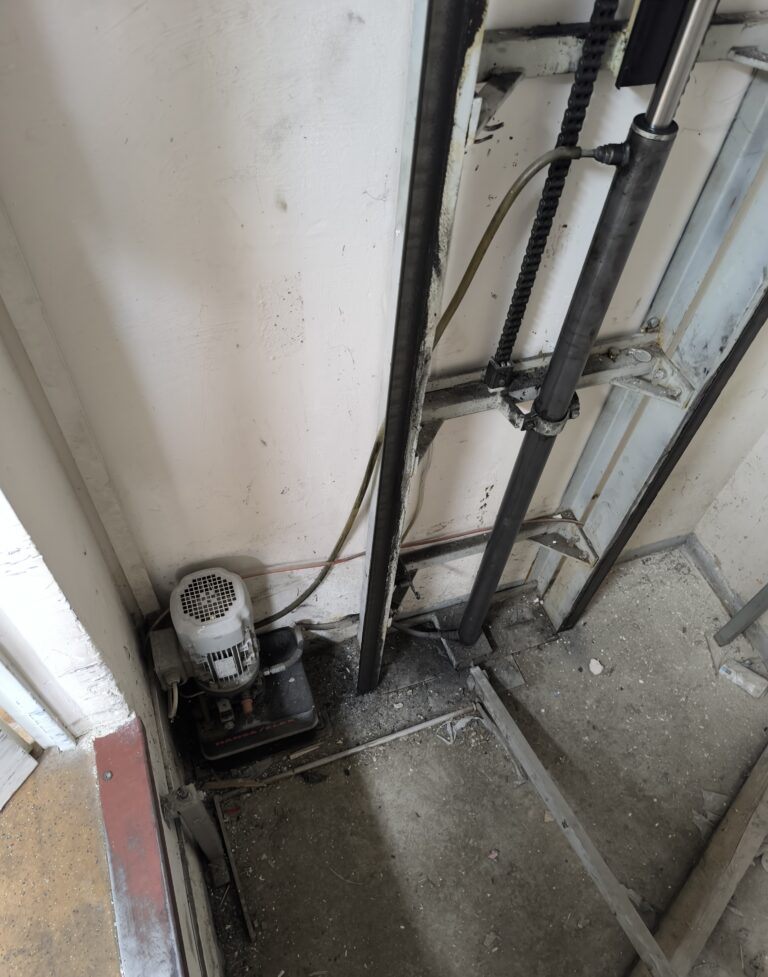

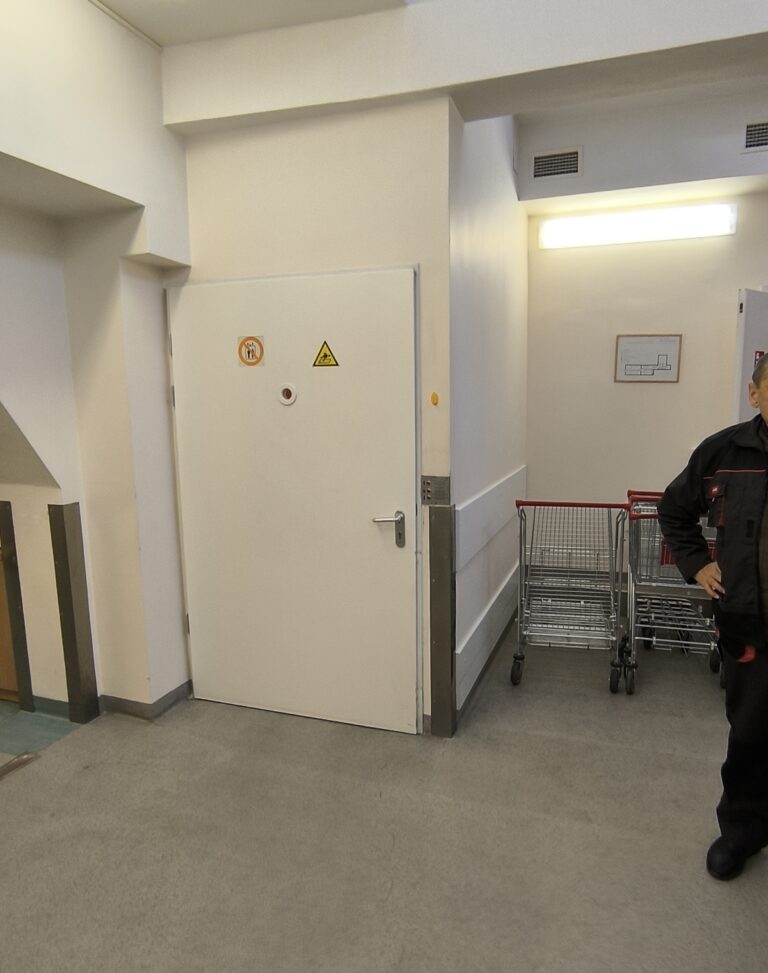

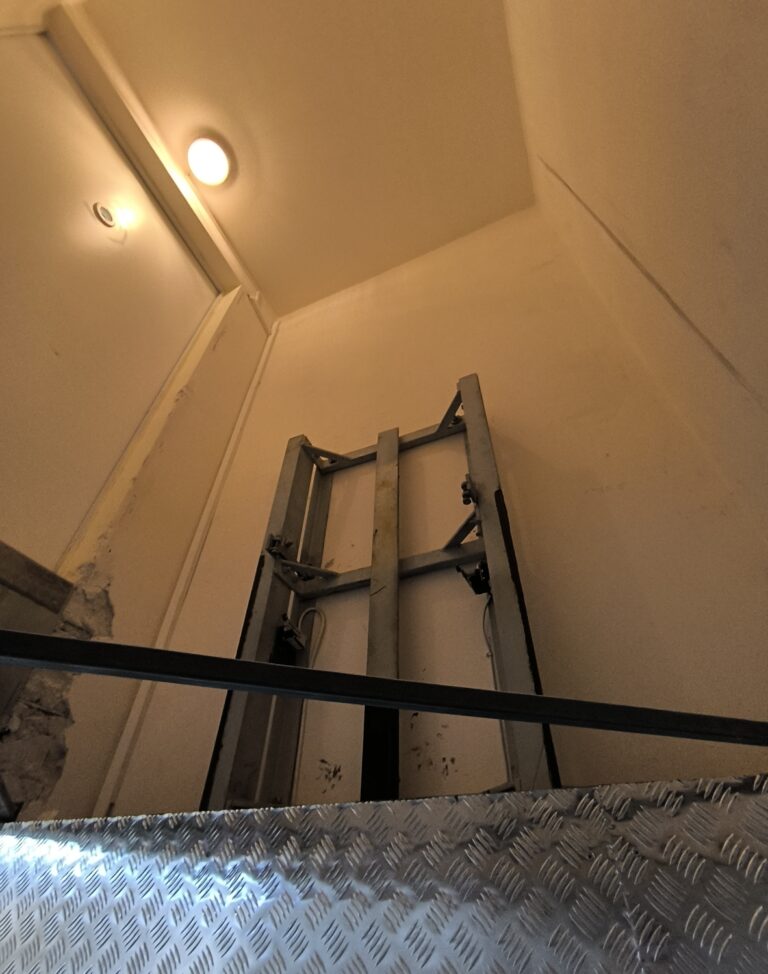

Before modernisation
Technical integration and site context

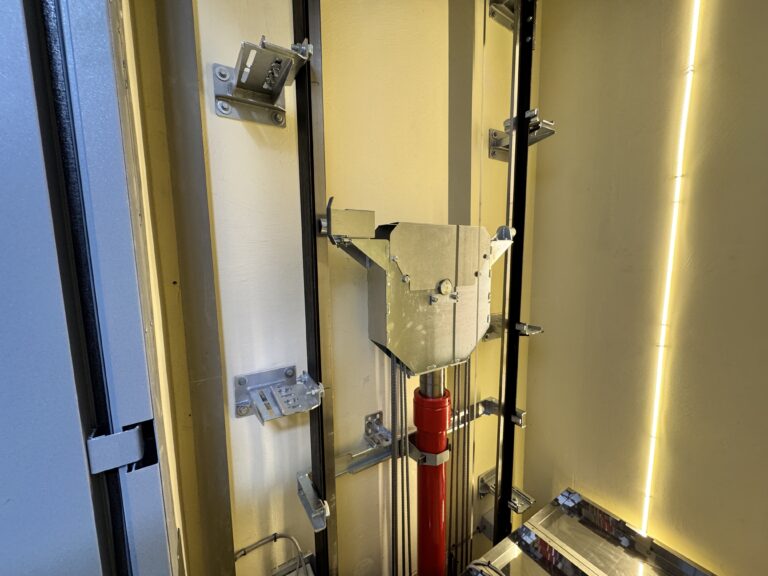

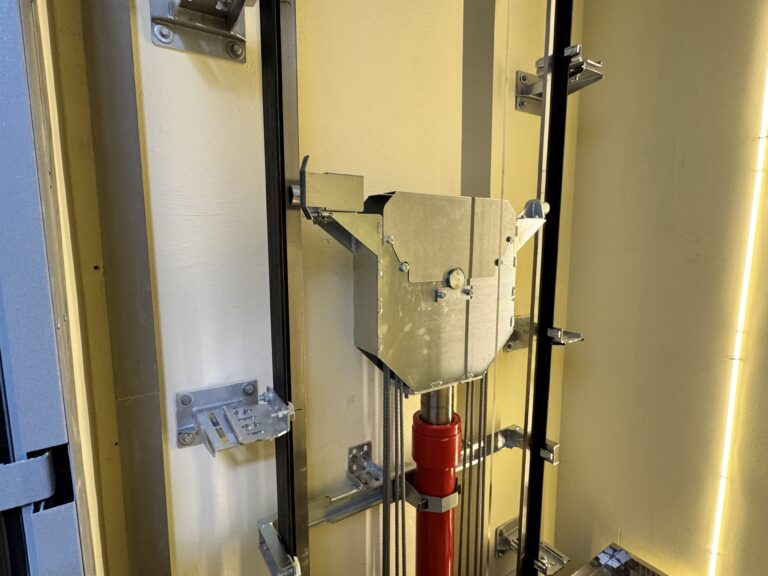

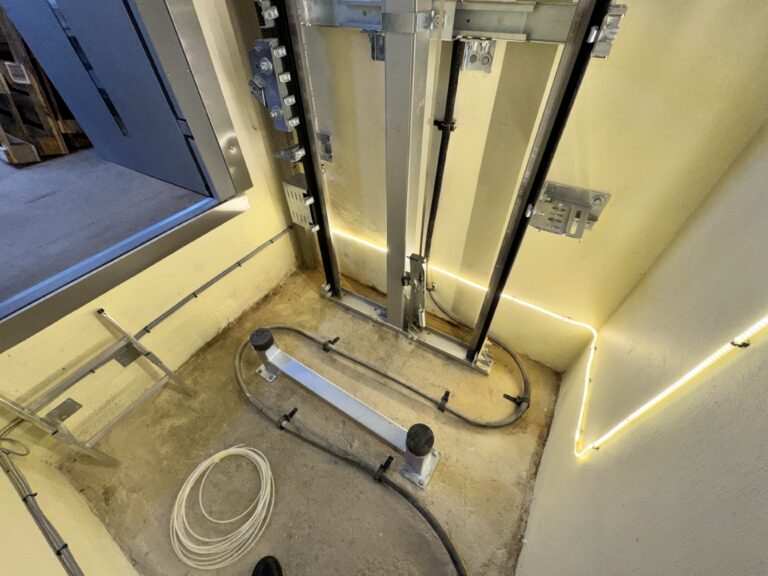

For this project, the Paradis HS1 was selected for its ability to deliver heavy-duty performance within a compact footprint. This specific configuration supports a load capacity of up to 1.5 tonnes and was tailored to maximise the usable area of the existing shaft with a platform size of up to 1,5m x 3m. By utilising a system that requires only a 400 mm pit and 2400 mm headroom, the project was successfully completed within the building’s current constraints, avoiding the need for extensive construction work. The HS1 is a hydraulic goods lift intended for the transport of goods with or without an attendant, providing the necessary versatility for facility staff.

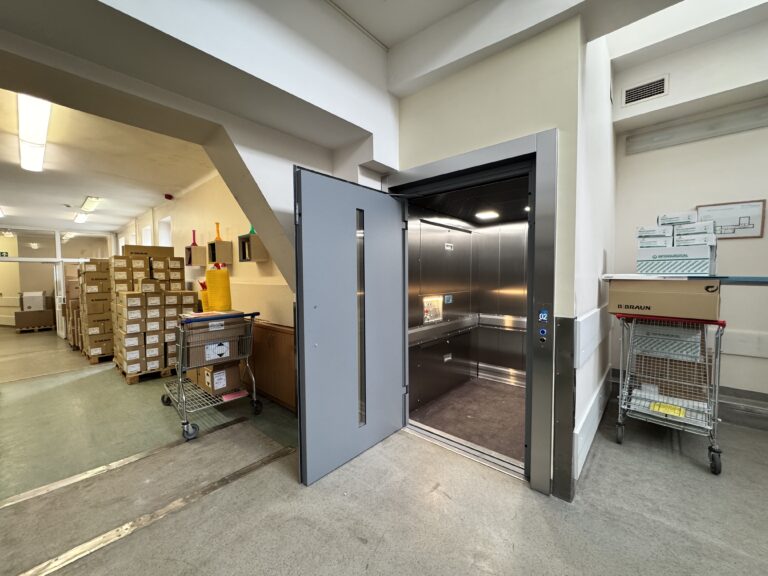

After modernisation
Engineering for durability and professional use
Given the high frequency of trolley traffic in a utility environment, the mechanical specification focused heavily on durability. Key features of this project include:

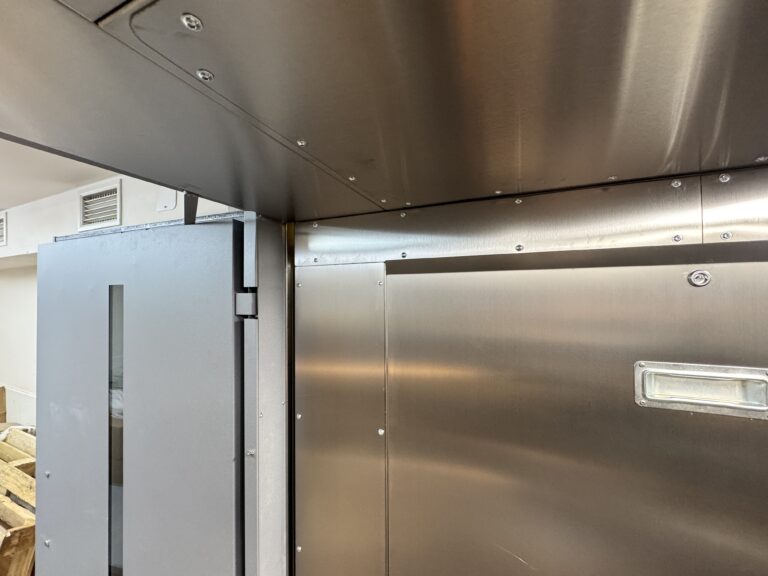

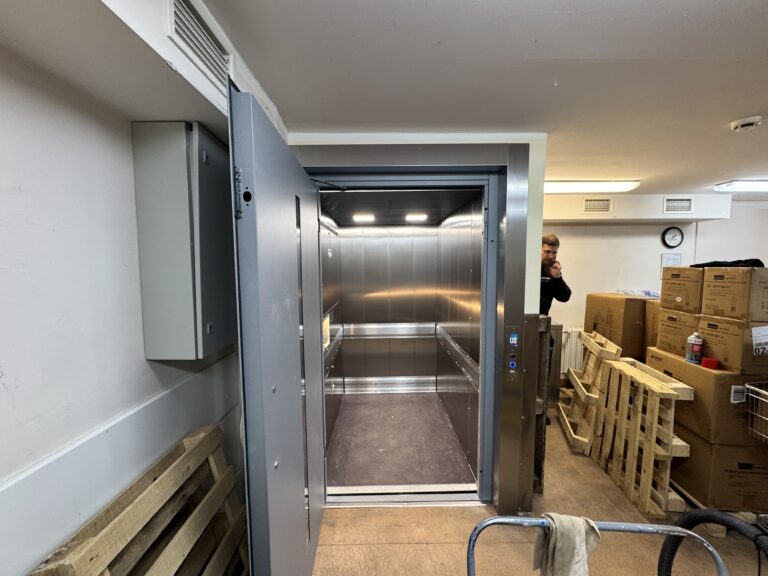

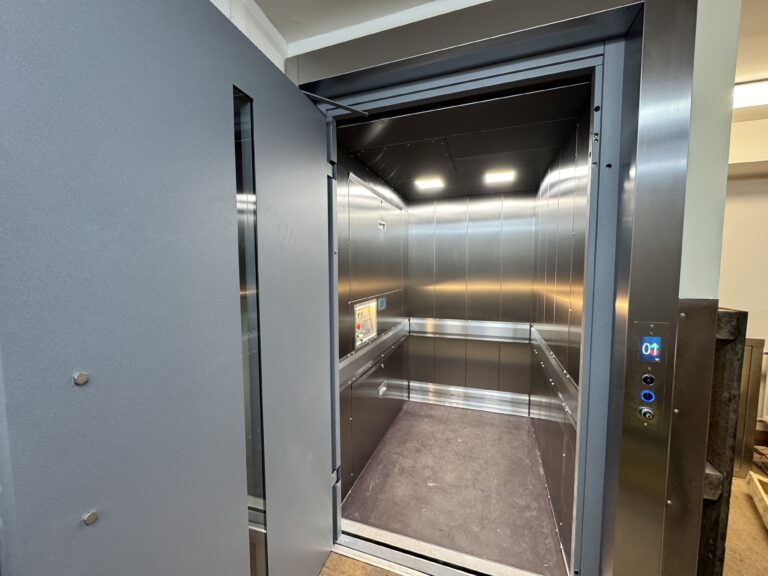

- Rugged cabin construction: the cabin is manufactured from galvanised steel and includes protective buffers on the walls to safeguard the structure against accidental impacts during loading.

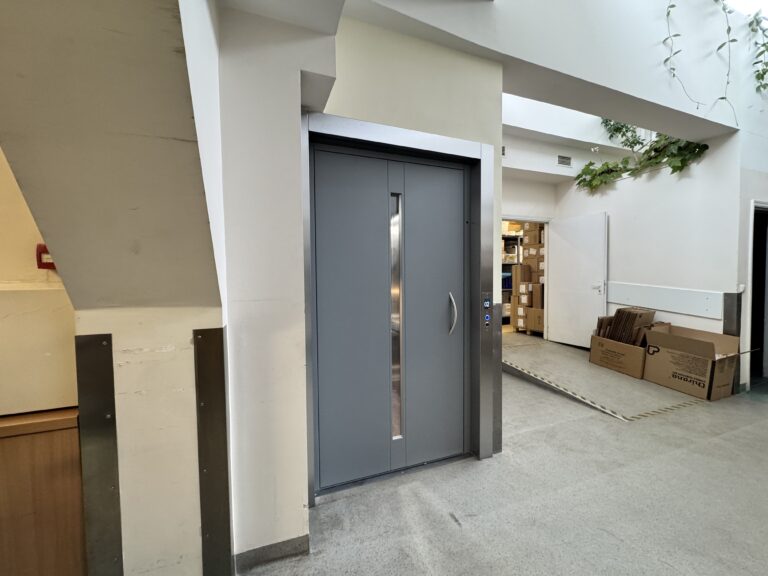

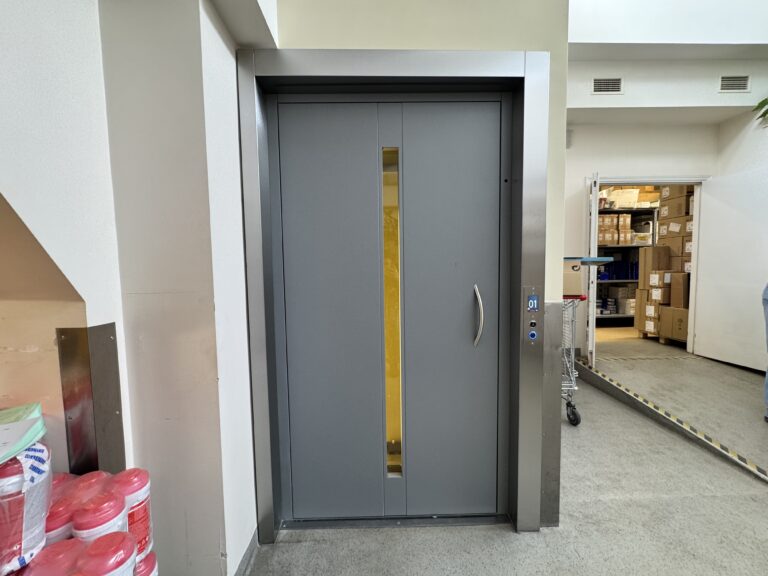

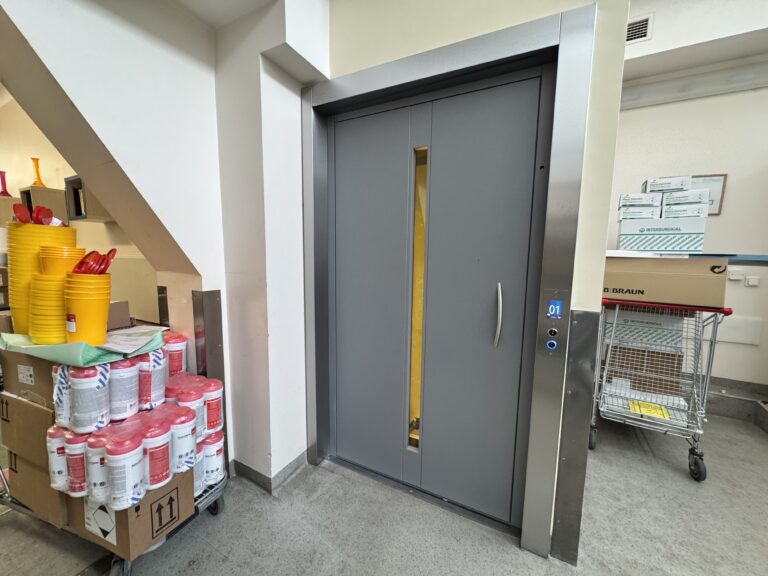

- High-quality finishing: the project features Metron hinged doors (1000×2000 mm) finished in RAL 7040 with a fixation mechanism, complemented by AISI stainless steel architraves.

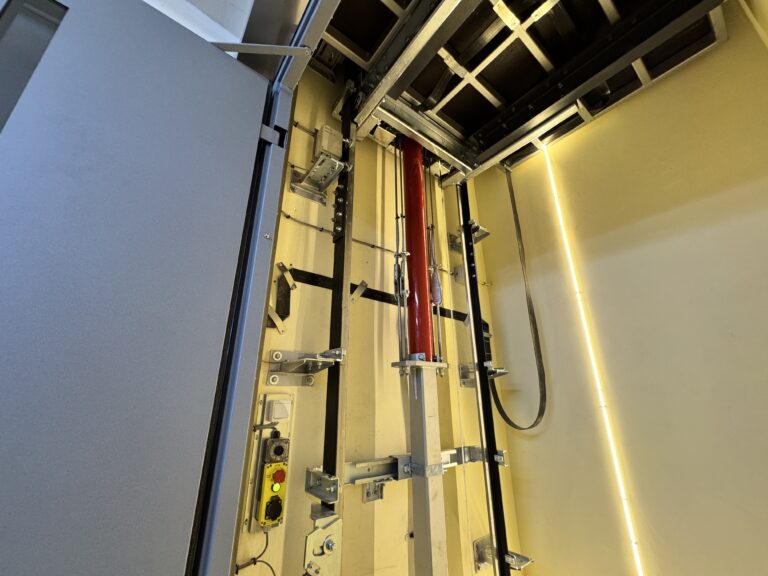

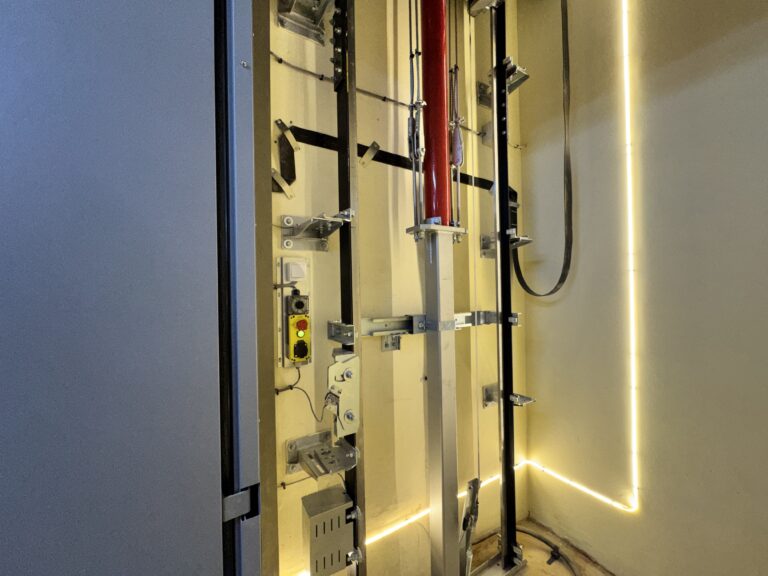

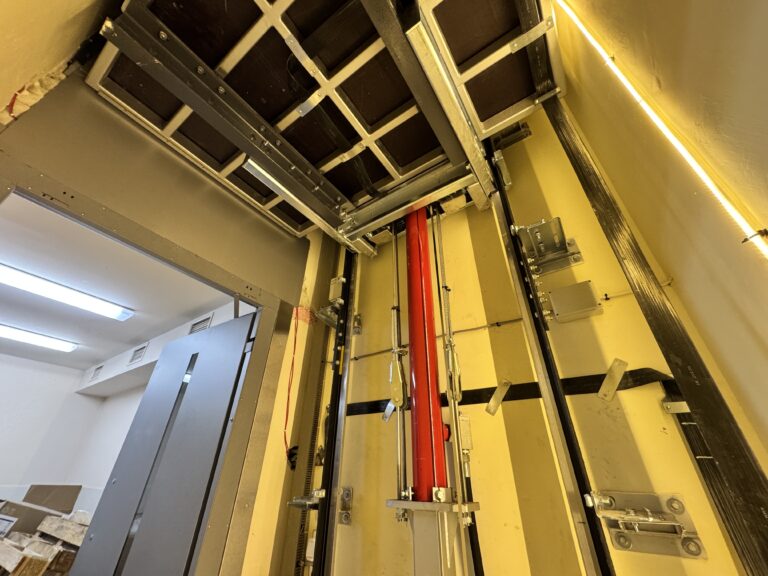

- Clean environment: to ensure long-term serviceability, the shaft was plastered and painted, while the ceiling and door-side walls were finished with aluminium composite cladding.
Operational support for service providers

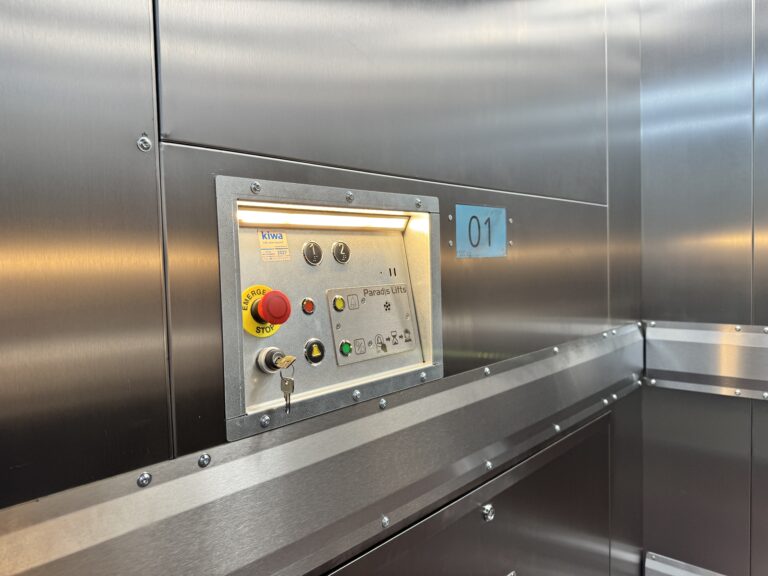

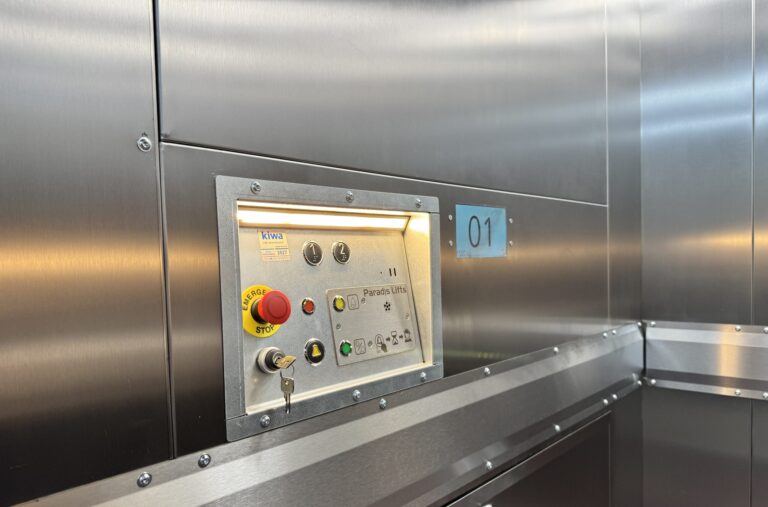

For distribution and maintenance partners, the HS1 provides significant operational advantages through its digital infrastructure. The system utilises a linear encoder for precise positioning and speed monitoring, allowing stop levels to be adjusted electronically via the controller instead of using traditional mechanical methods. Furthermore, the integrated smart controller enables real-time remote diagnostics and monitoring. This allows service providers to troubleshoot specific issues off-site, plan on-site visits more effectively, and reduce the need for emergency call-outs, ensuring the lift remains operational with minimal downtime.
Looking to provide your clients with a reliable, customisable goods lift solution? Explore the full Paradis HS range on our website or reach out for technical specifications.
