Hydraulic cargo lift HS1

HS1 is the solution to your vertical transportation needs

HS1 is the more compact and cost-effective model of the Paradis Cargo line, most well suited for light industrial and retail applications, with load capacity of up to 1,5 tone and a platform size of 3m.

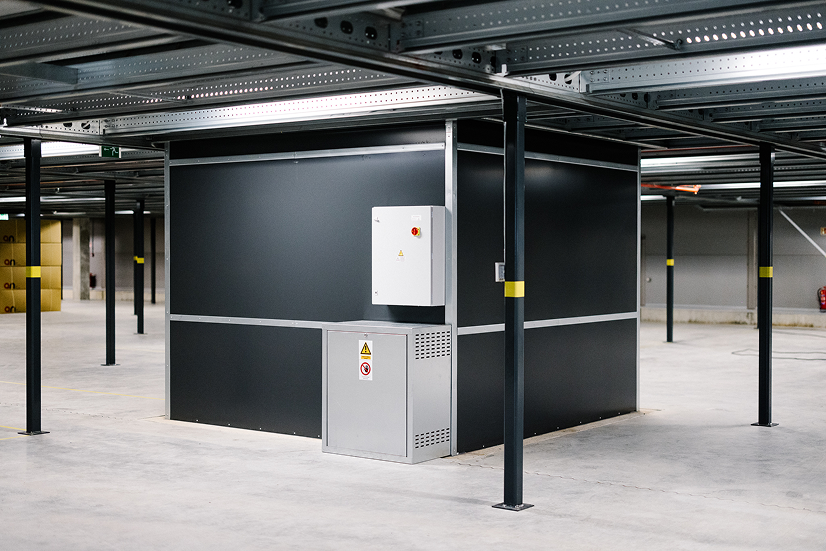

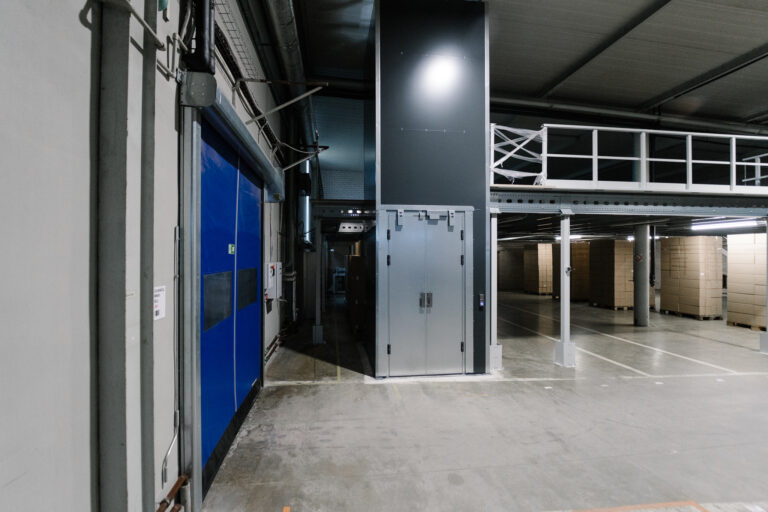

Paradis HS1 is a hydraulic lift intended for use of transportation of goods with or without attendant. Applications of the lift range from small business application to intense usage in manufacturing facilities.

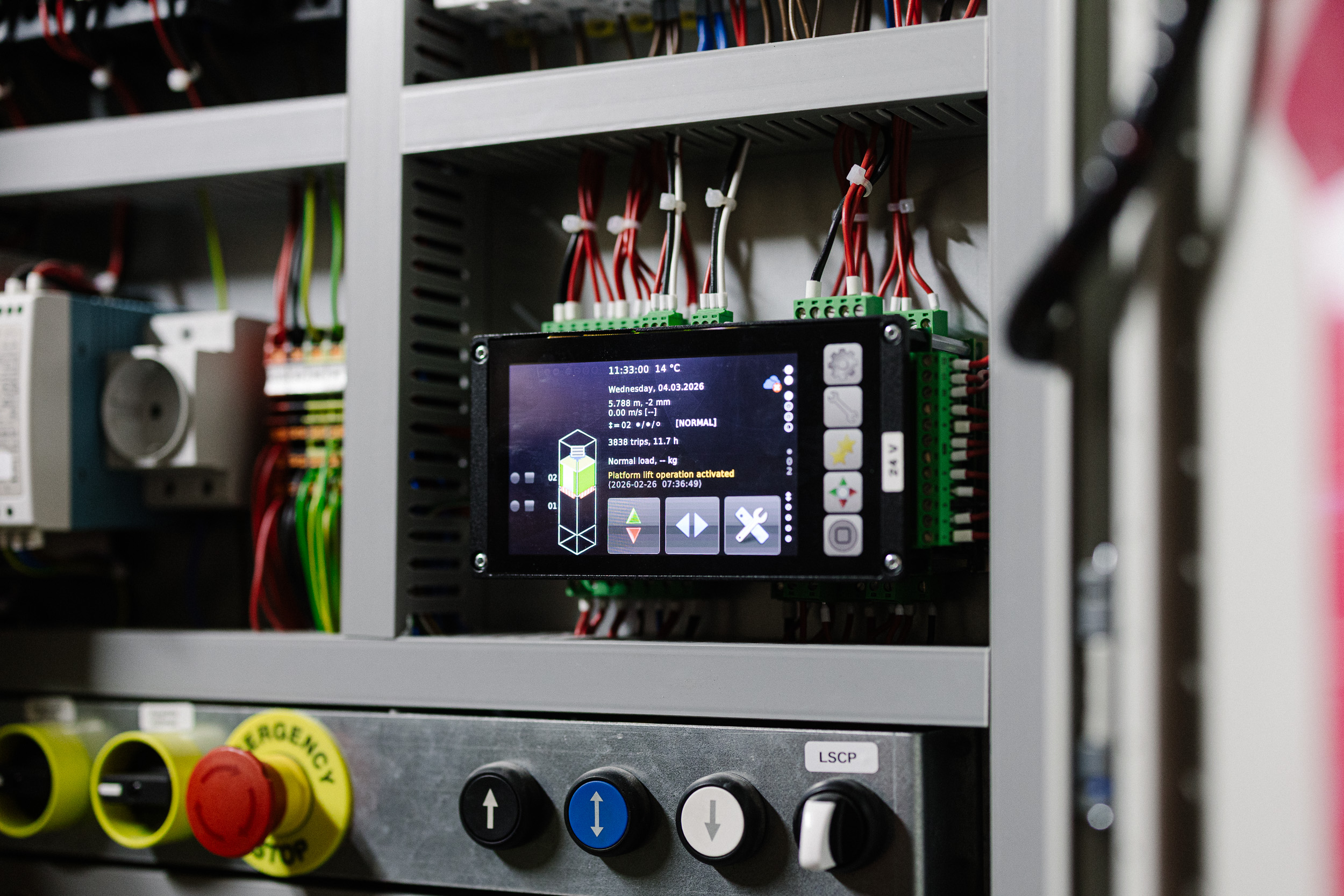

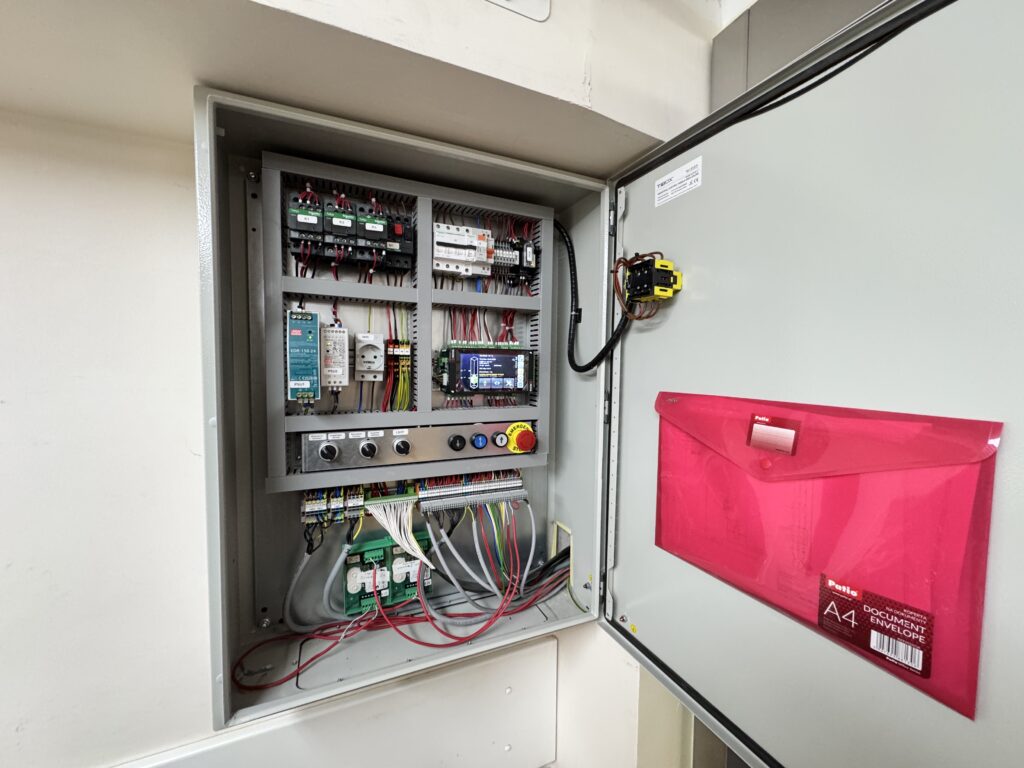

Paradis HS1 lift is already in use by companies in the fields of furniture, robotics and automation, retail, logistics, as well as medical facilities. HS1 uses a smart controller capable of off-site monitoring, enabling rapid and effortless troubleshooting. Soft start and soft stop system ensure a comfortable ride, from beginning to end. Automatic re-levelling allows the platform to always be level with the floor, no matter if the lift is fully loaded or empty.

Wide range of available configurations allows high space efficiency. Robust design, custom solutions and smart controller open possibilities to integrate the lift not only to the building of any kind, but also ensures the safe and efficient usage.

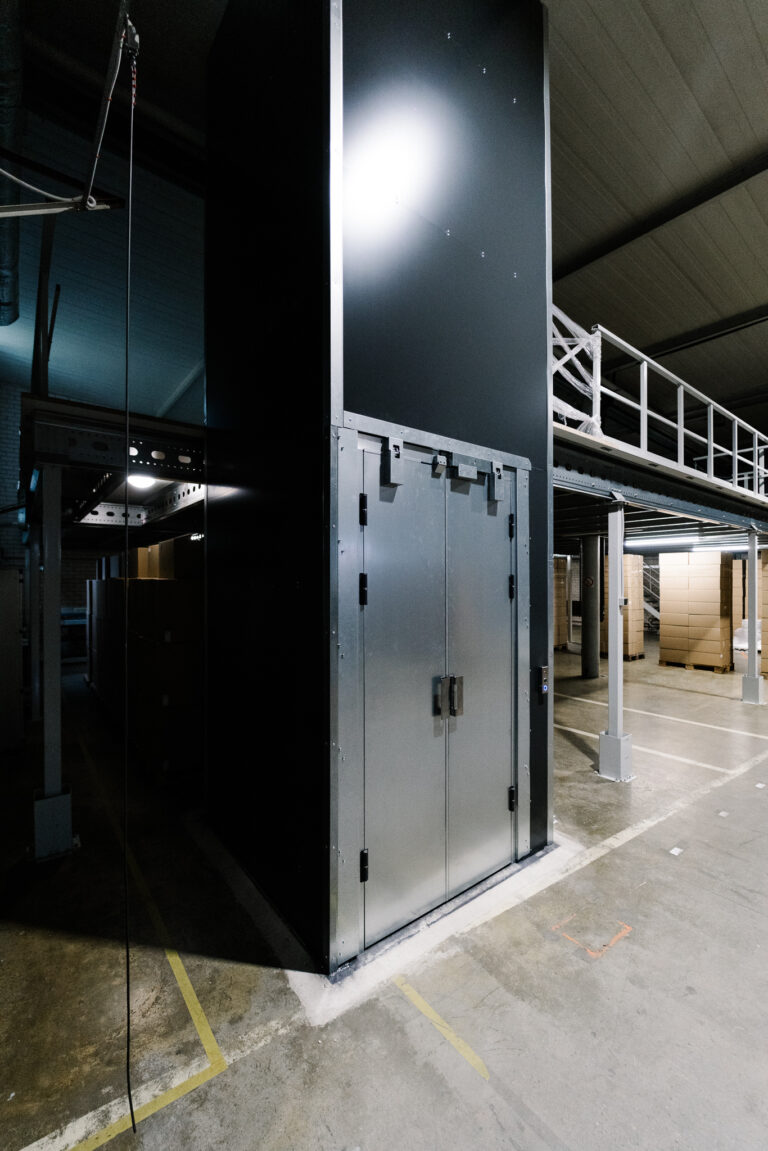

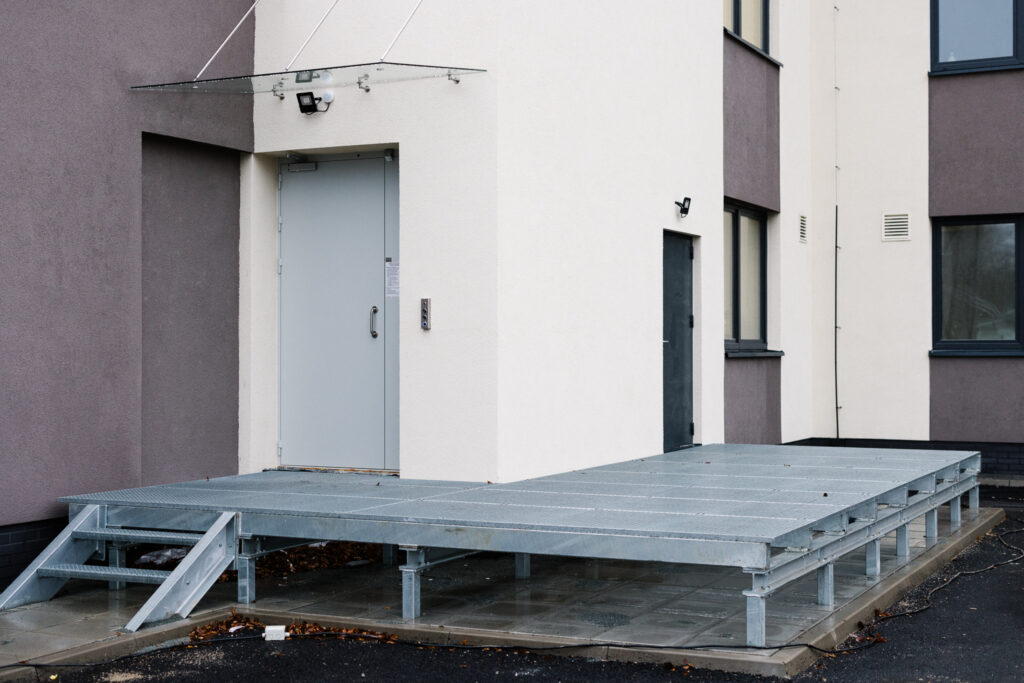

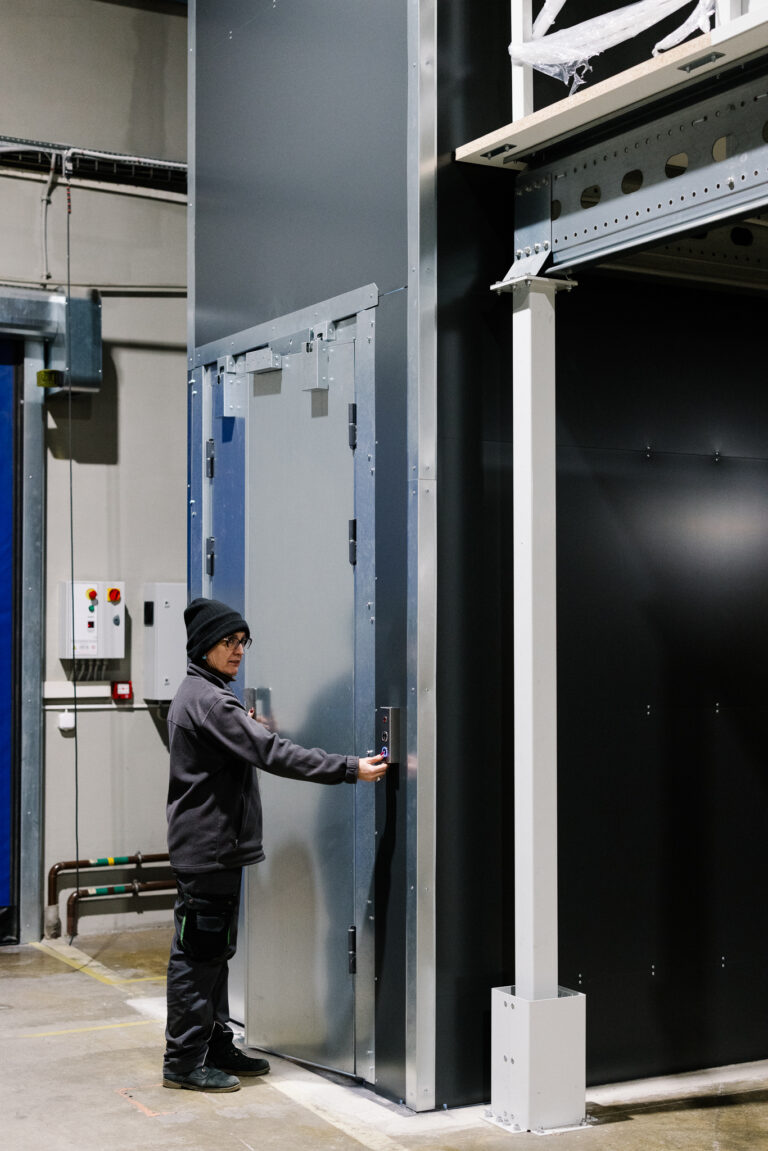

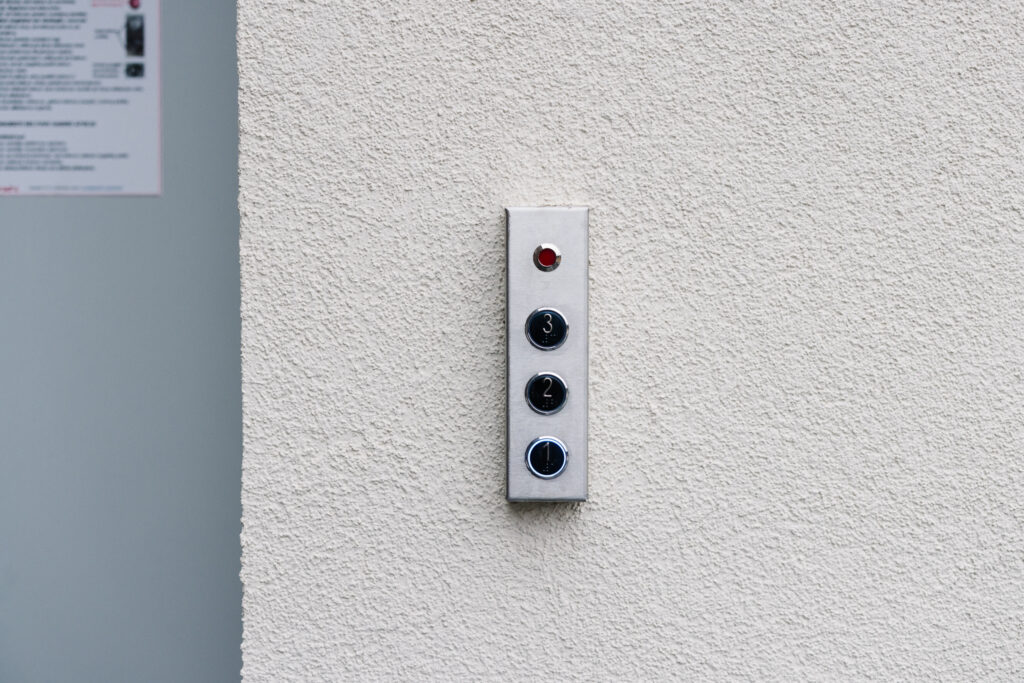

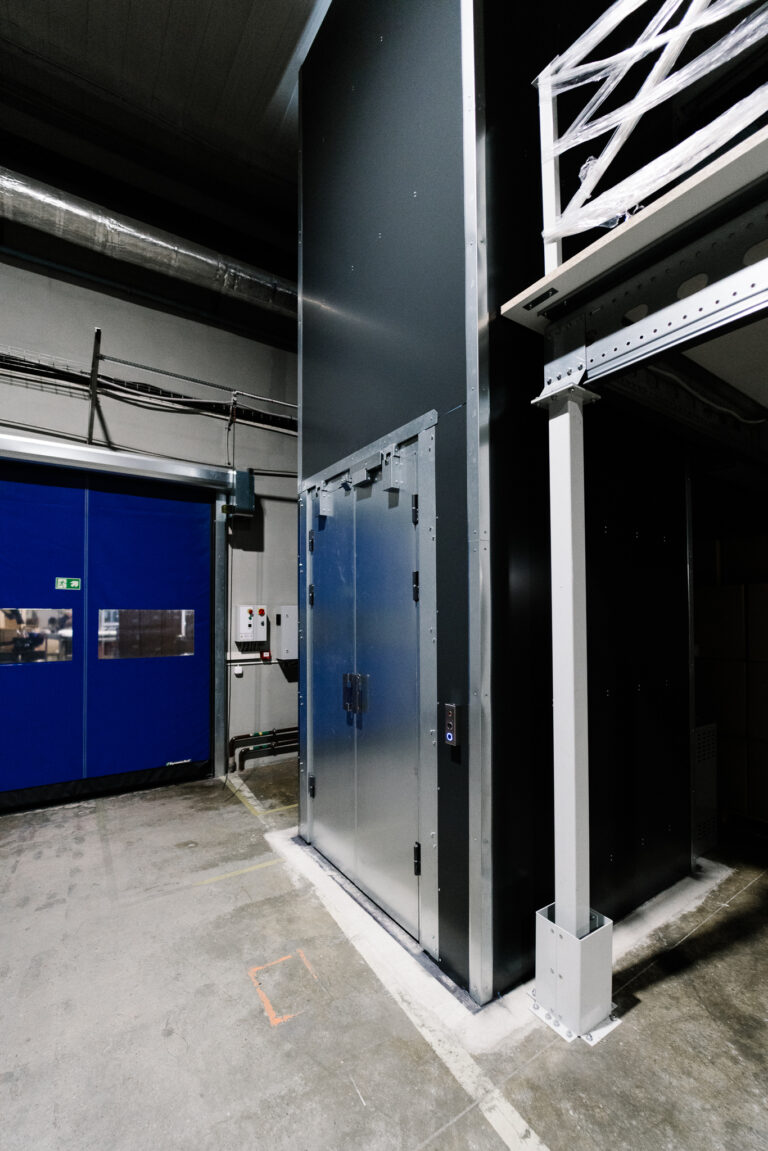

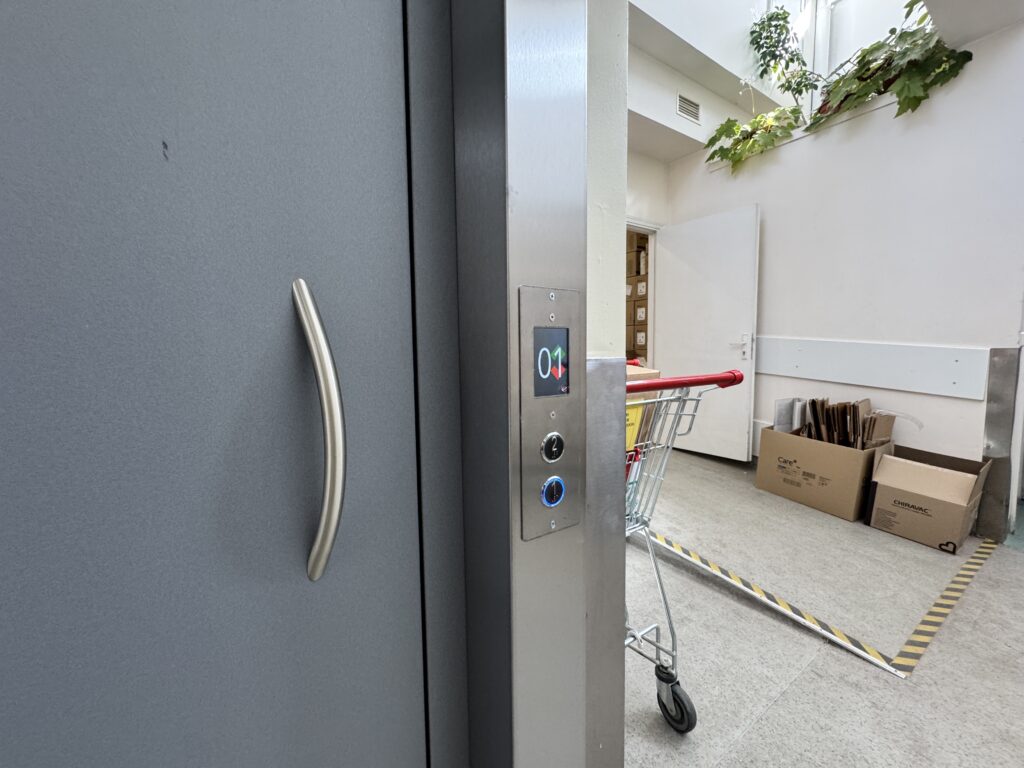

More images

01
Enhanced Safety Systems:

Choose us for peace of mind. Our lifts include protection against suspension failure and cylinder slippage, along with Unintended Car Movement Protection (UCMP) to prevent unexpected movement and real-time speed monitoring to avoid overspeed scenarios.
02
Advanced Remote Monitoring & Diagnostics:

Choose us for proactive maintenance. Our lifts are equipped with live monitoring systems that provide real-time data on speed, positioning, and safety elements, enabling remote troubleshooting and error resets to minimize on-site maintenance.
03
Precision Positioning with Linear Encoder:

Choose us for accuracy and flexibility. A linear encoder ensures precise monitoring of elevator position and speed, and stop levels can be adjusted electronically without physical modifications.
04
Energy-Efficient Screw Pump Option

Choose us for sustainability. Our optional screw pump is more energy-efficient than traditional gear pumps, with a compact design and reduced fluid turbulence for smoother hydraulic operation, minimizing mechanical vibrations and the risk of component failure.

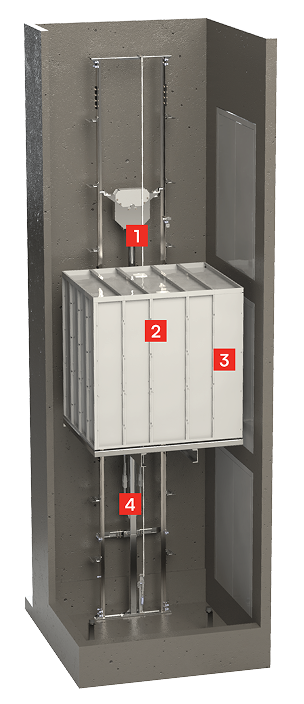

01

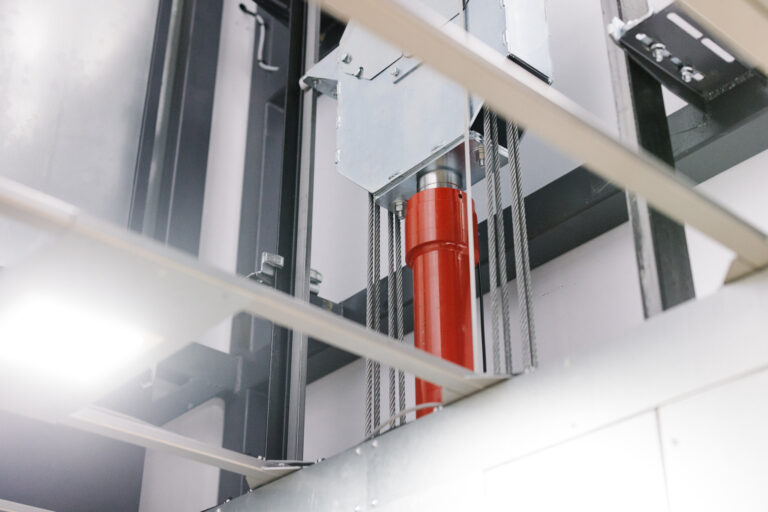

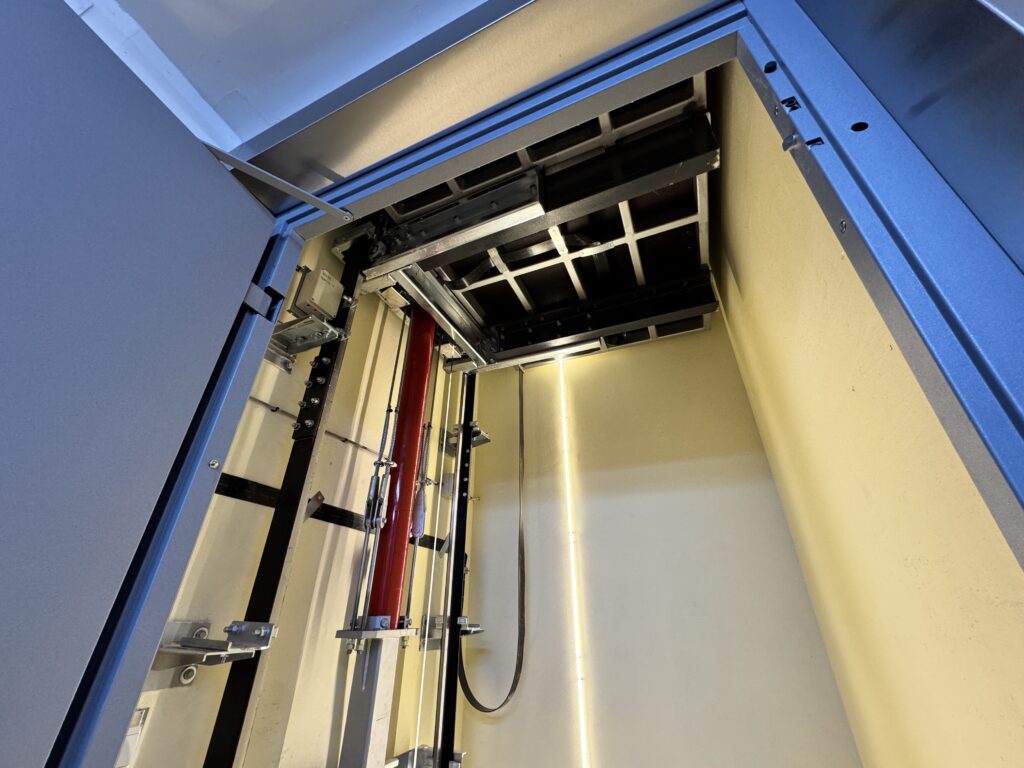

The mechanical components of Paradis HS1 are designed for quiet, smooth operation and longevity, enabling constantly high throughput
02

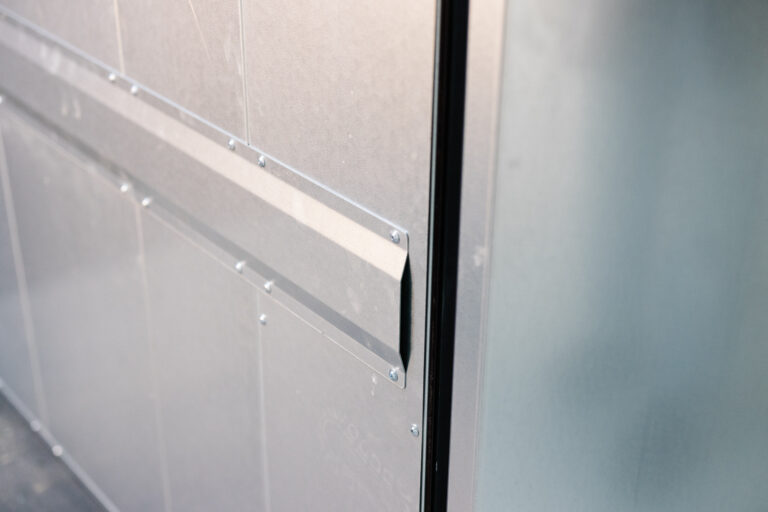

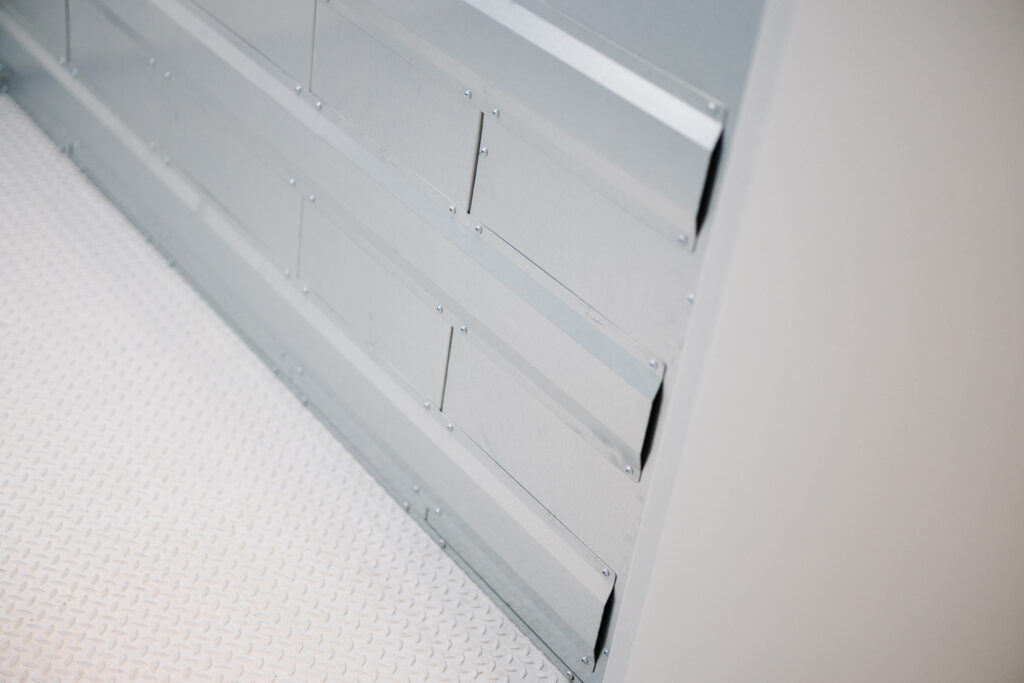

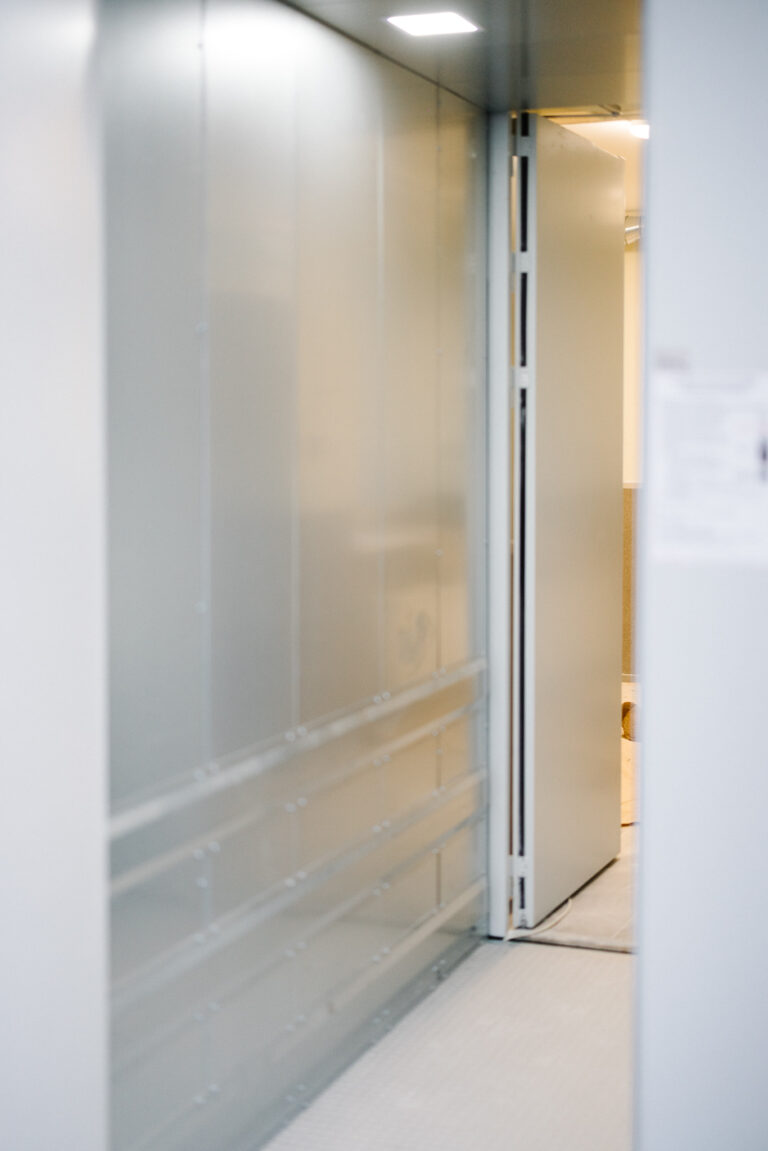

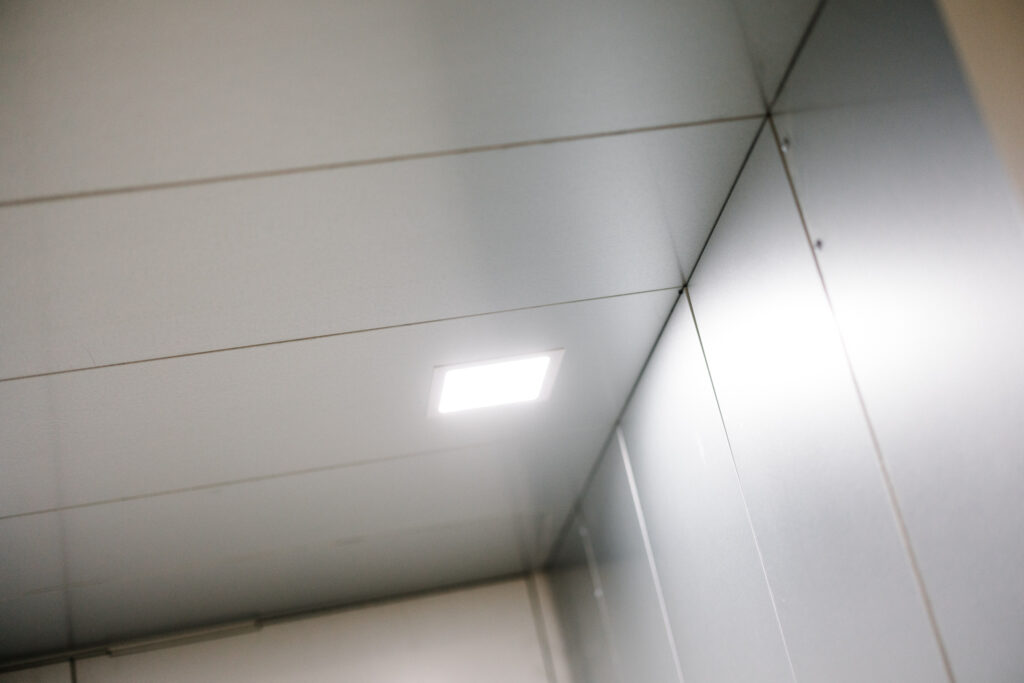

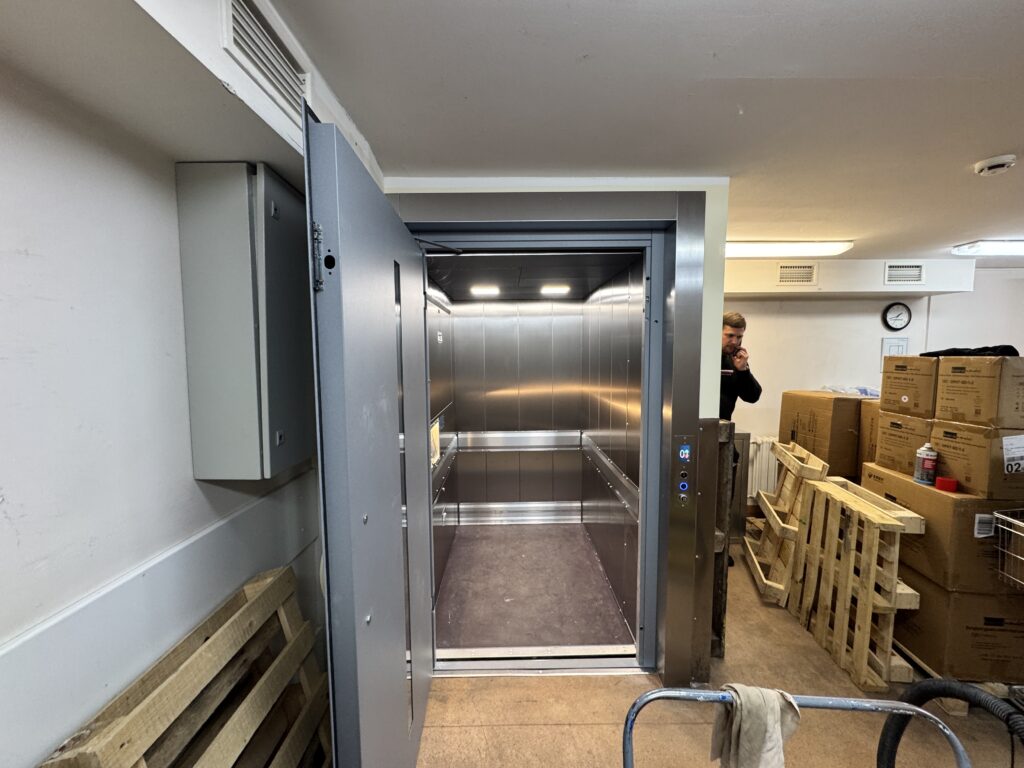

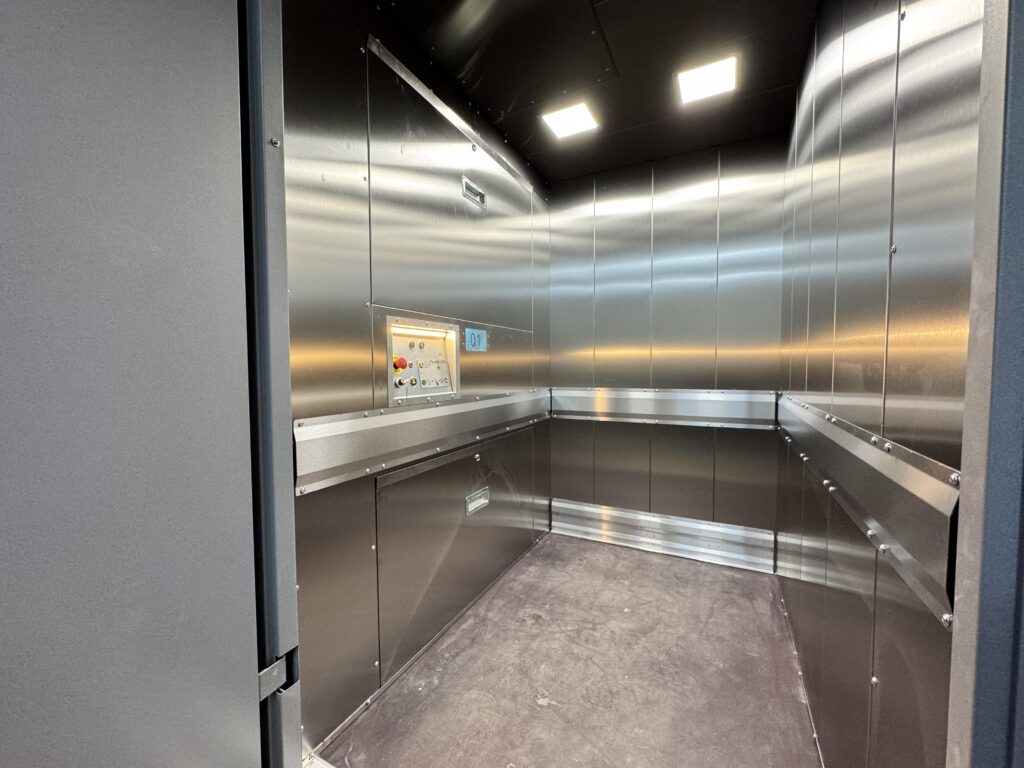

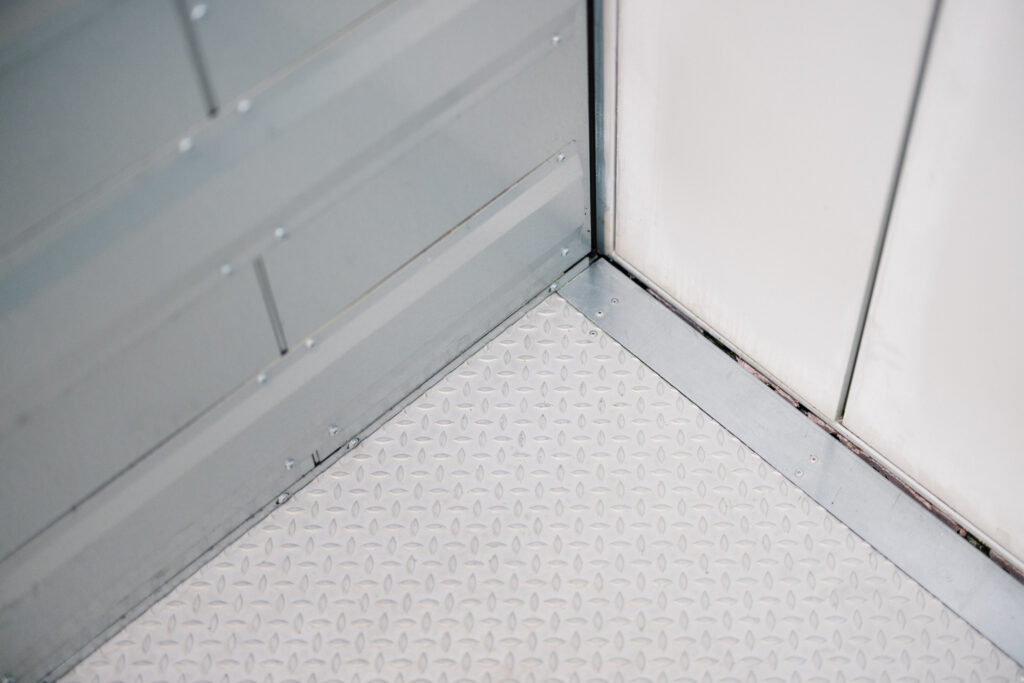

Robust car panels ensure that the cabin can cope with real-world conditions, with material selection to suit your specific vision and needs
03

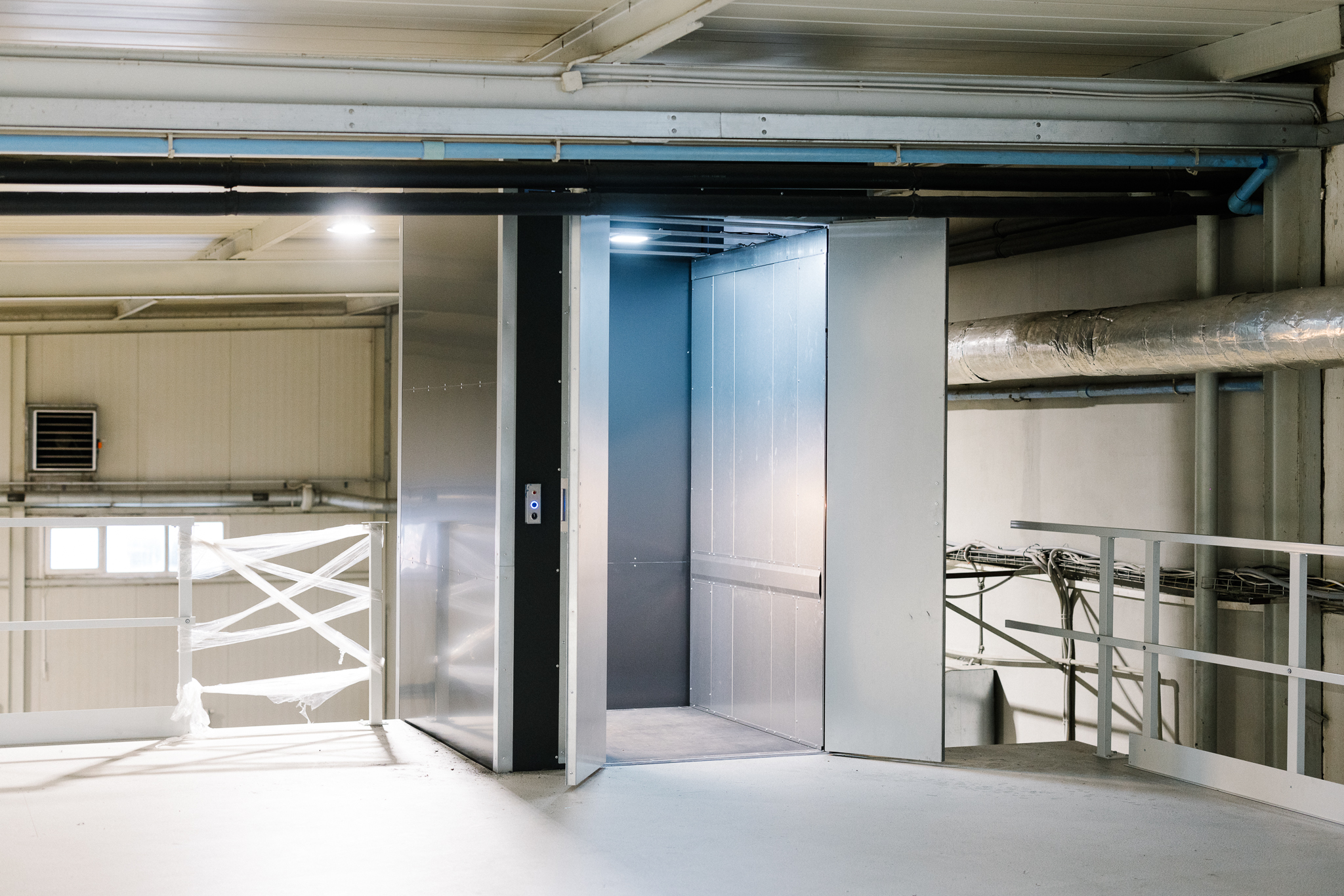

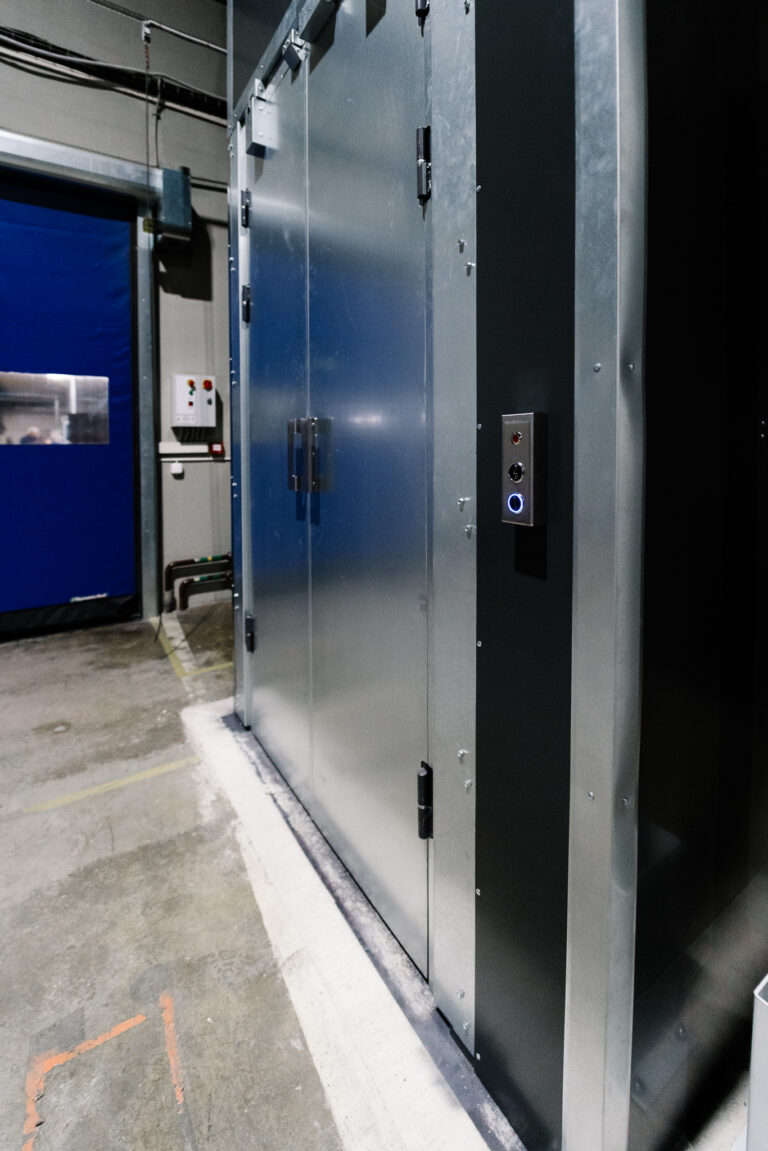

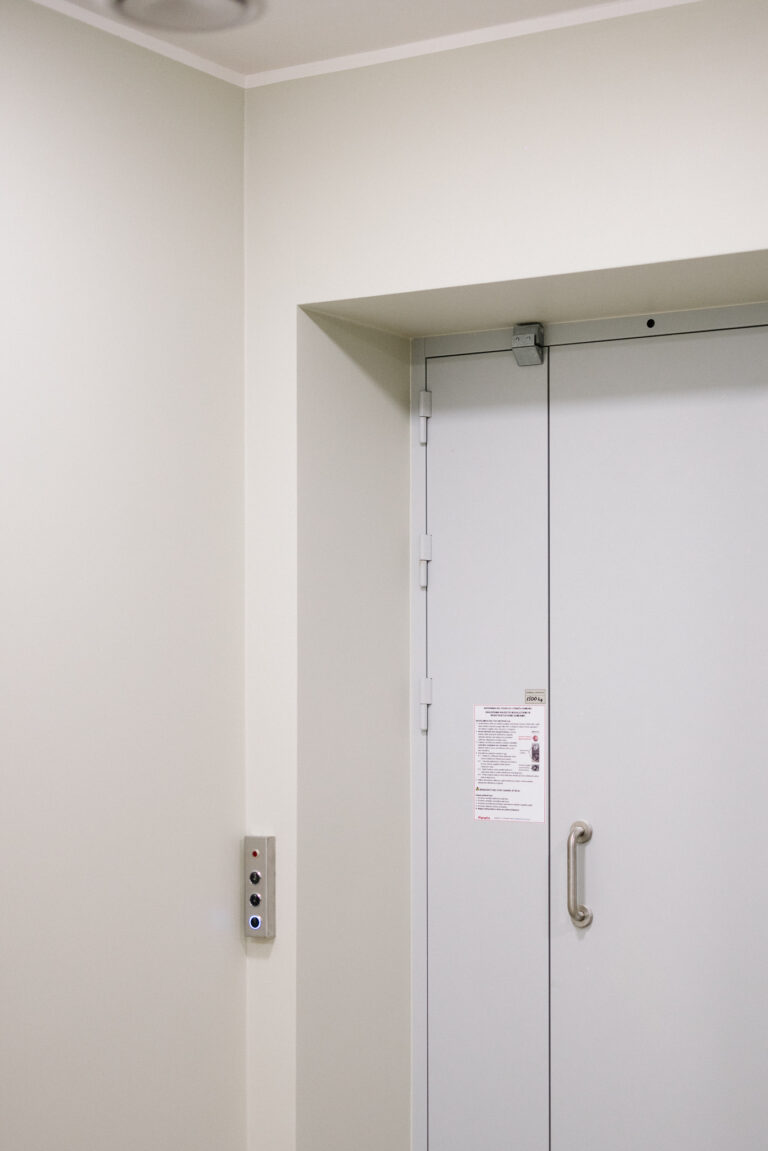

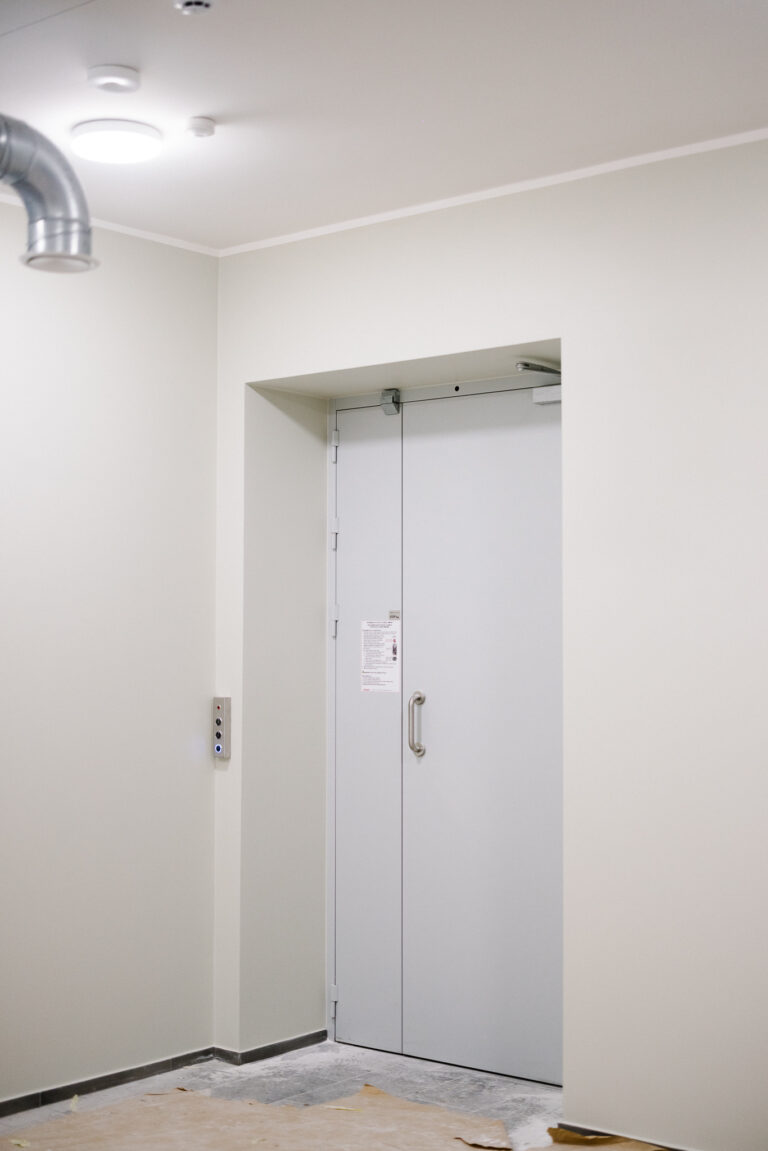

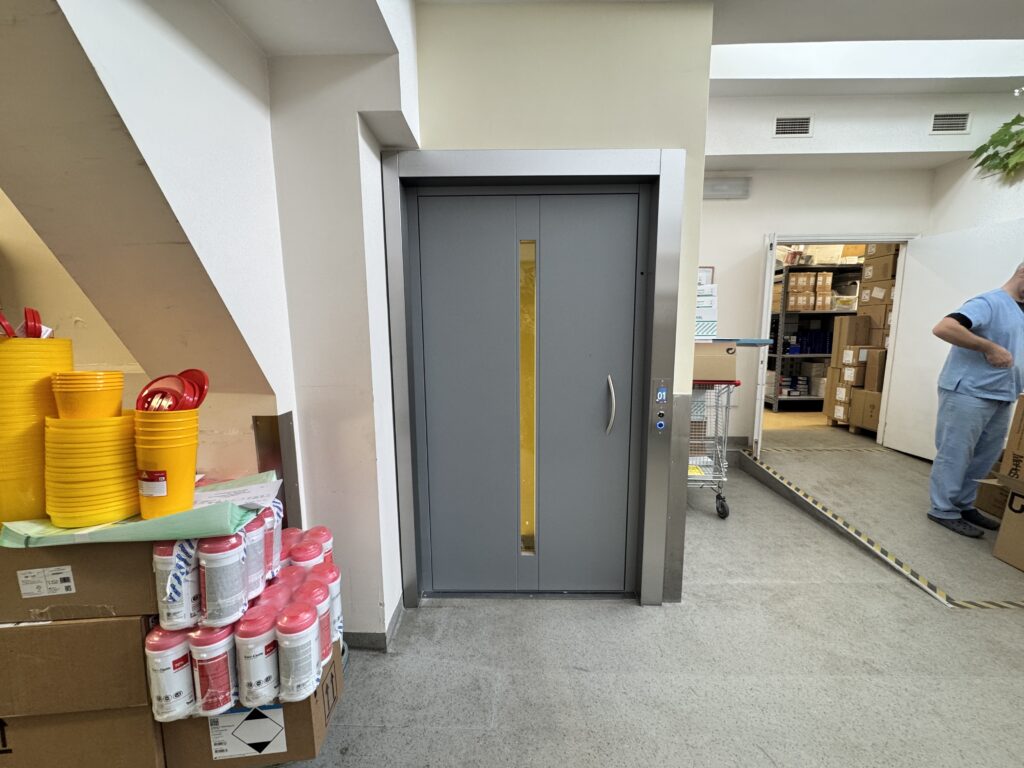

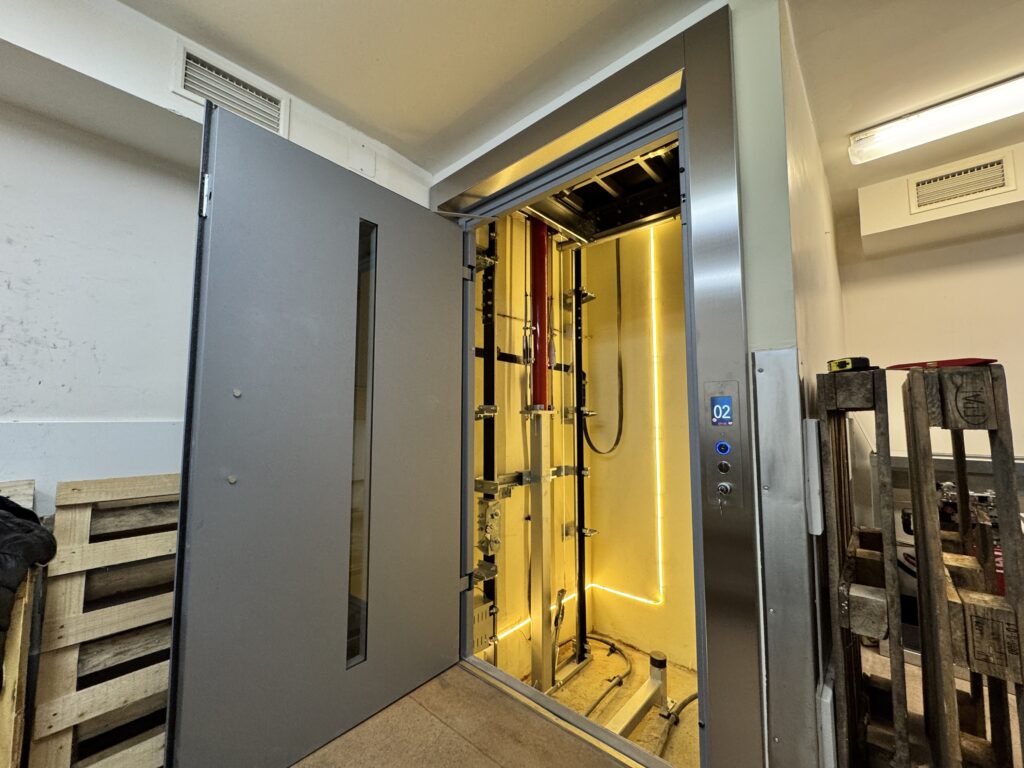

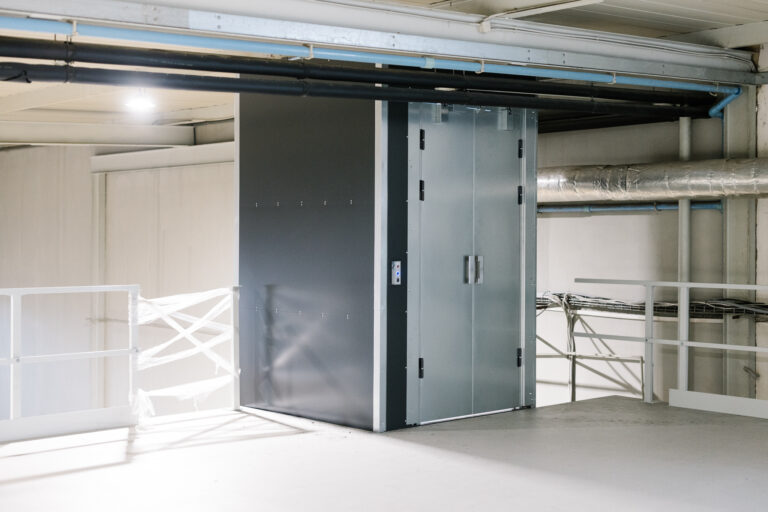

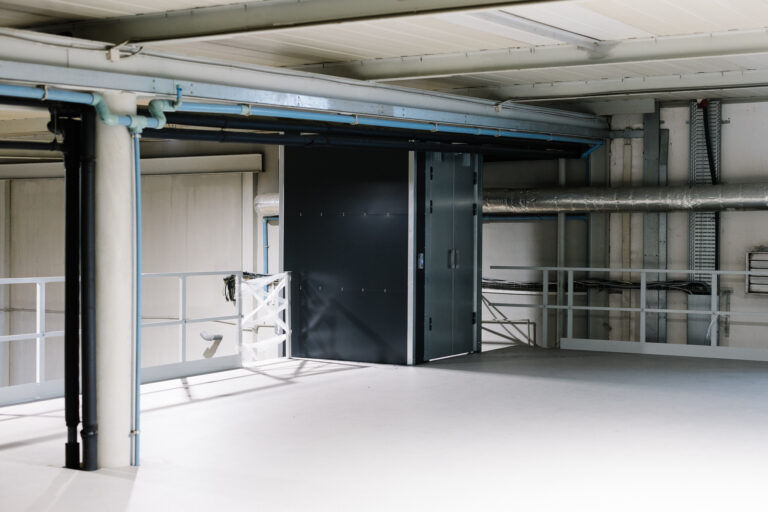

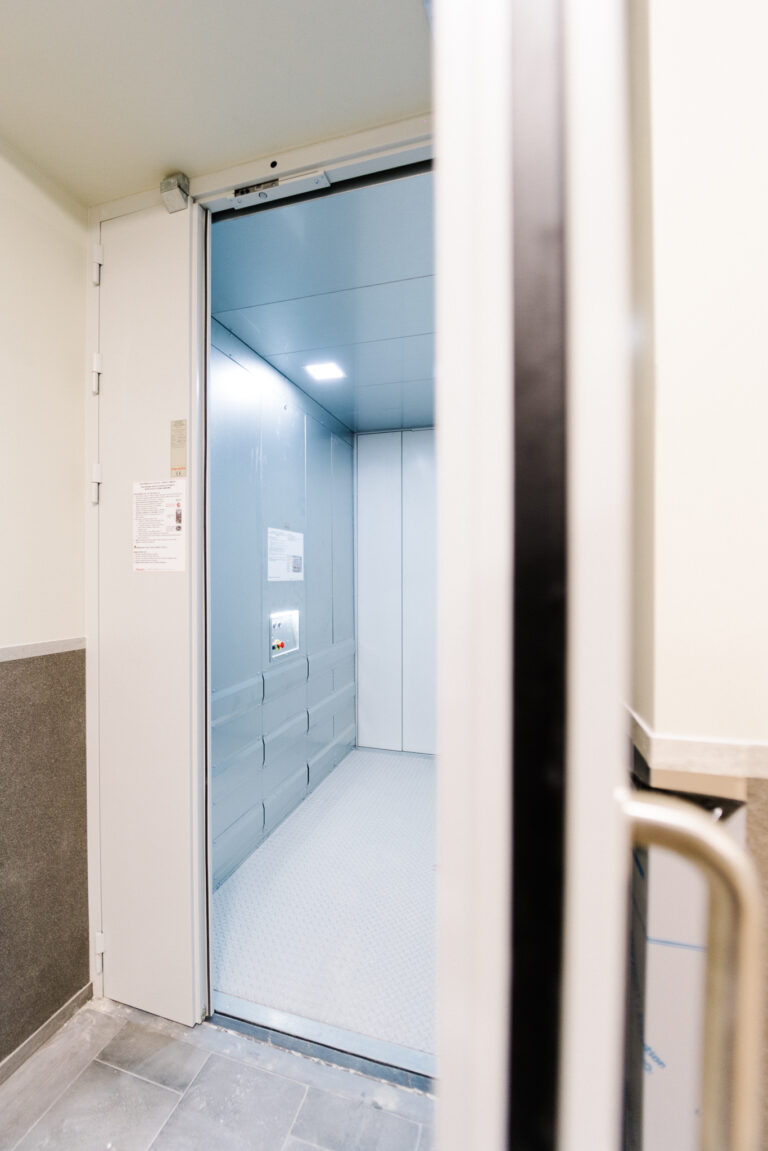

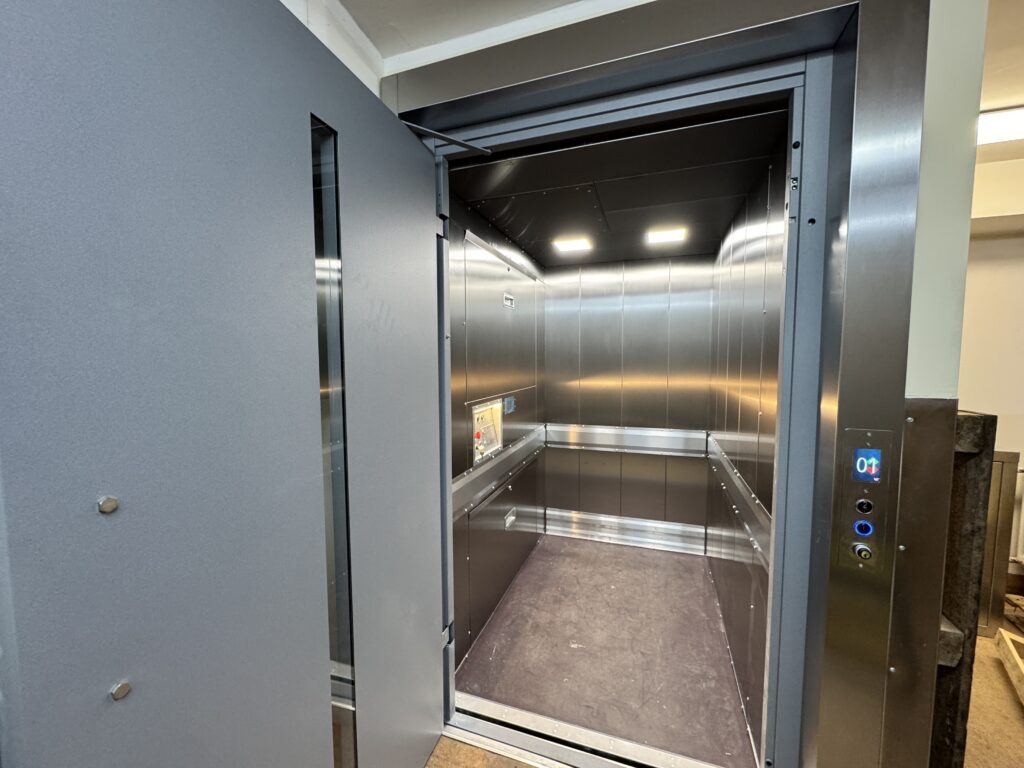

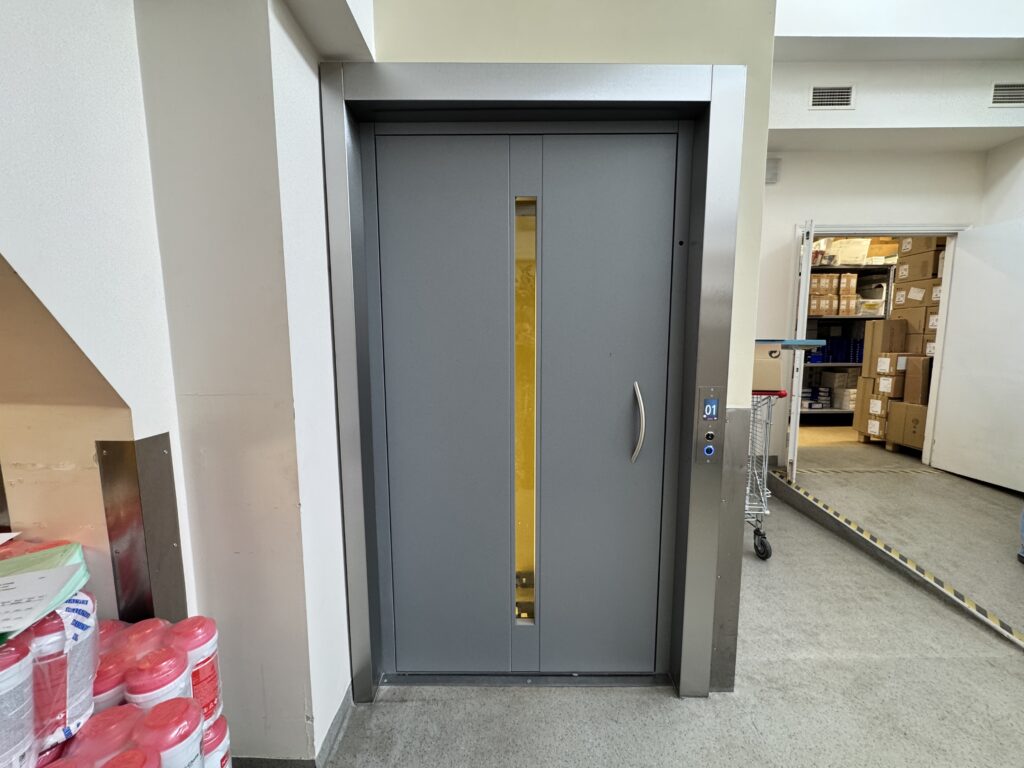

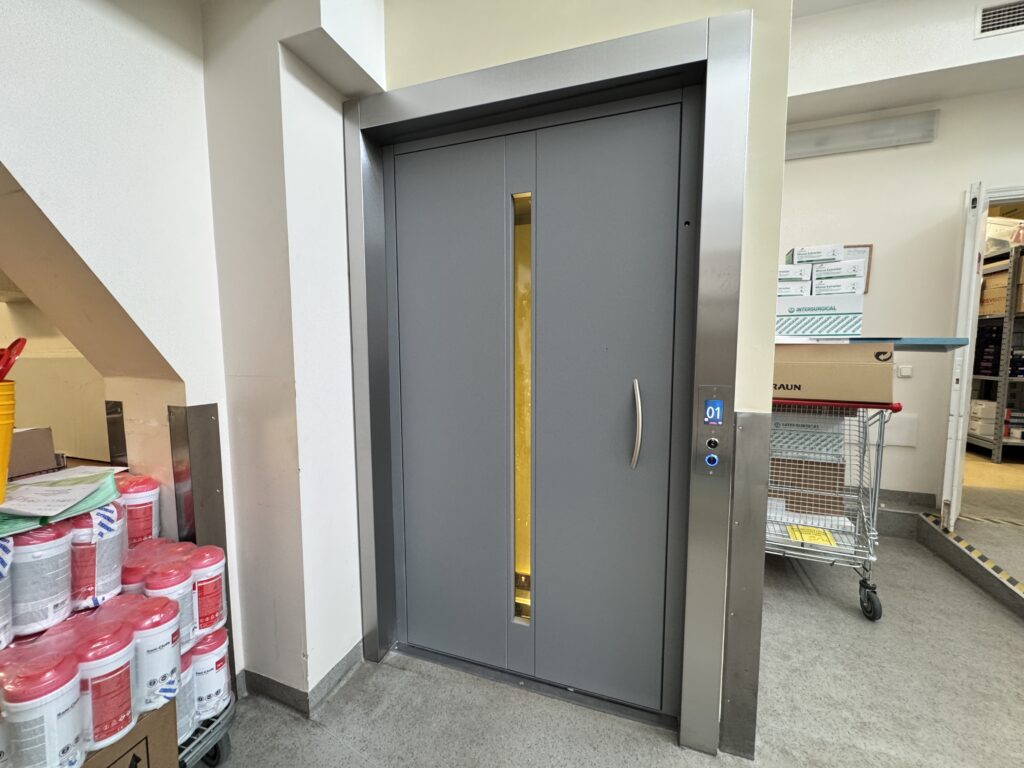

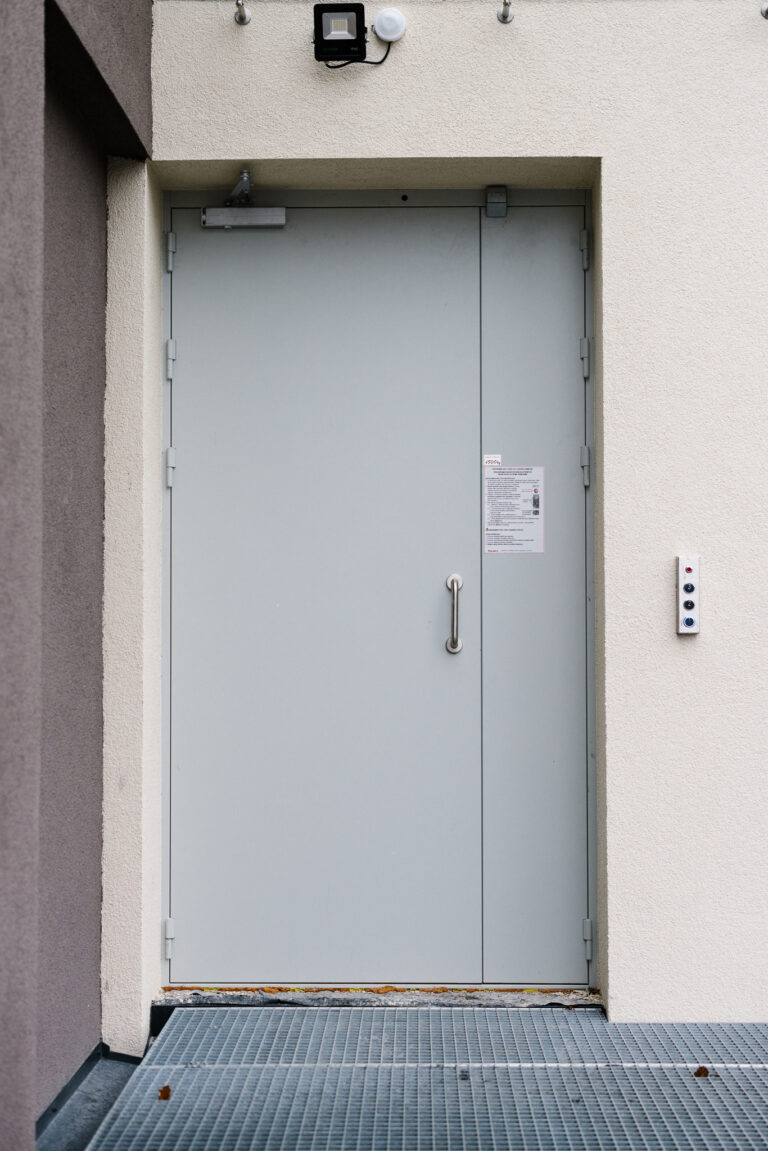

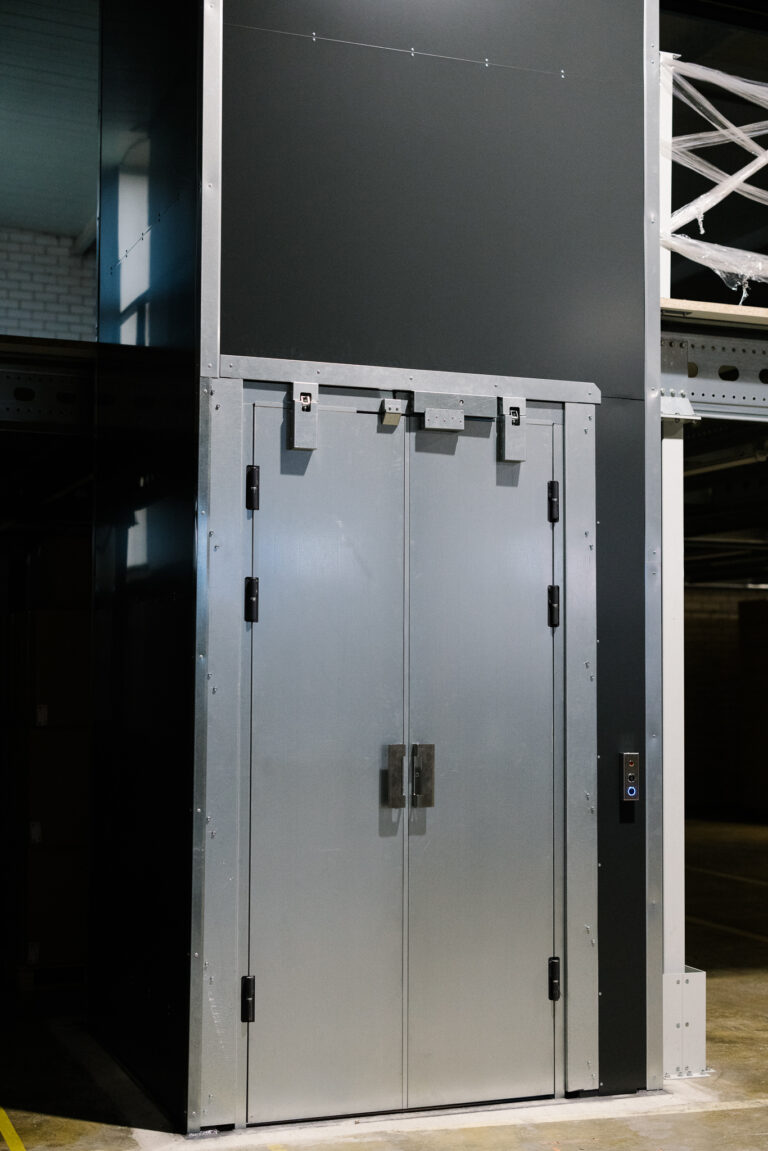

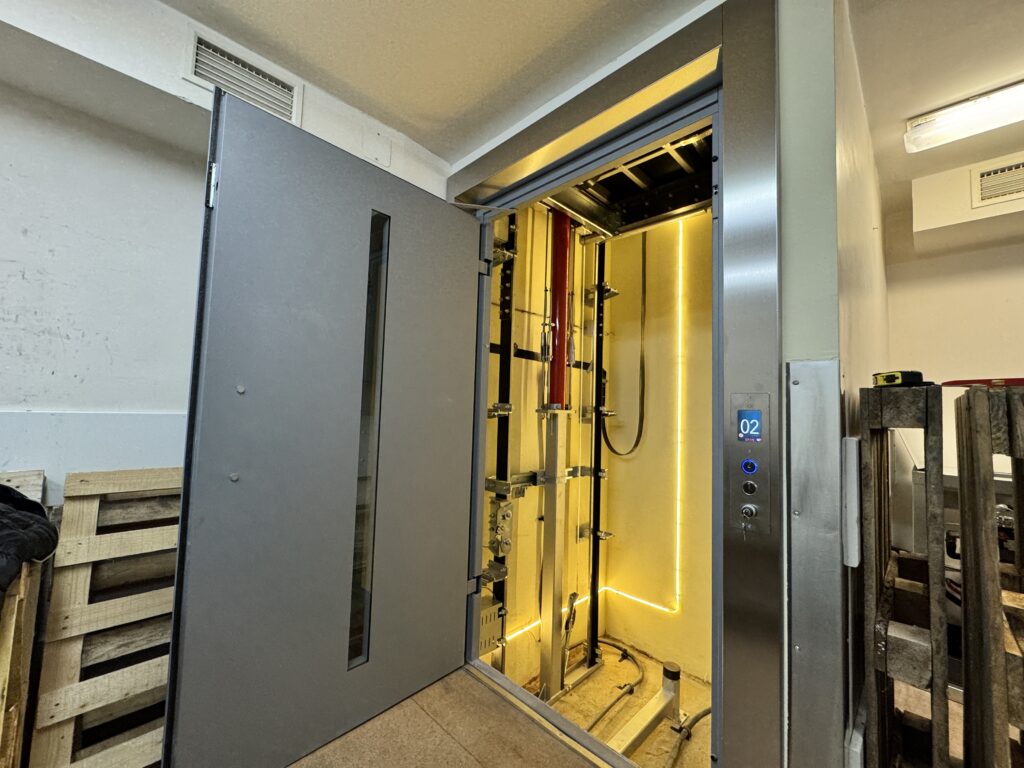

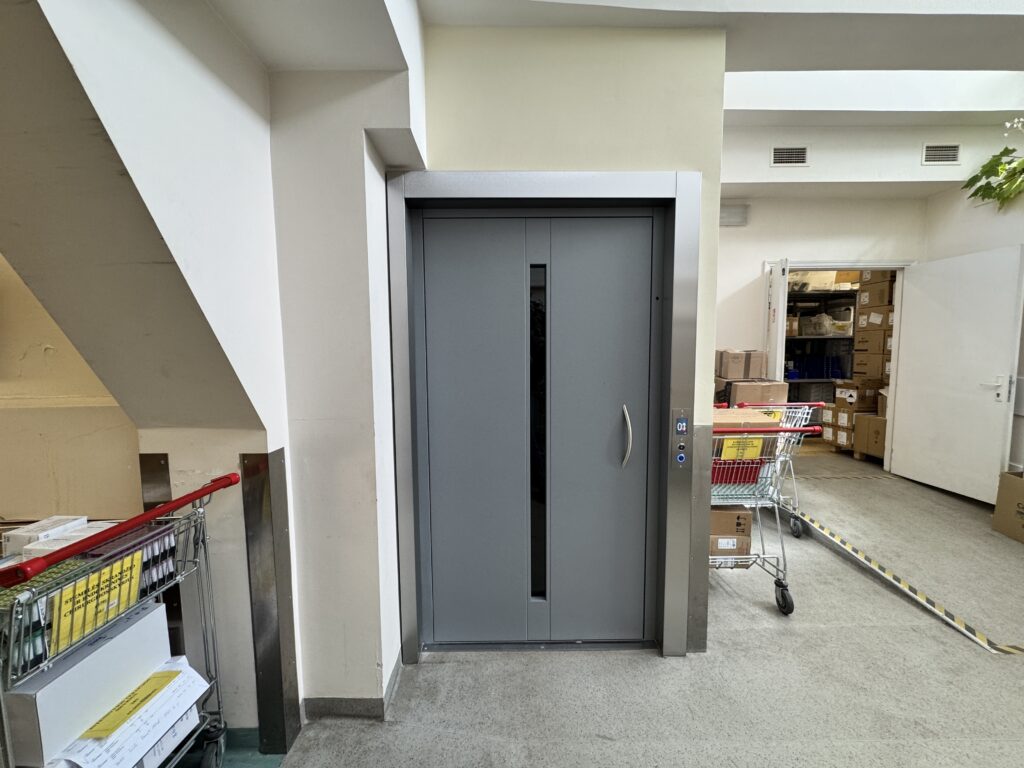

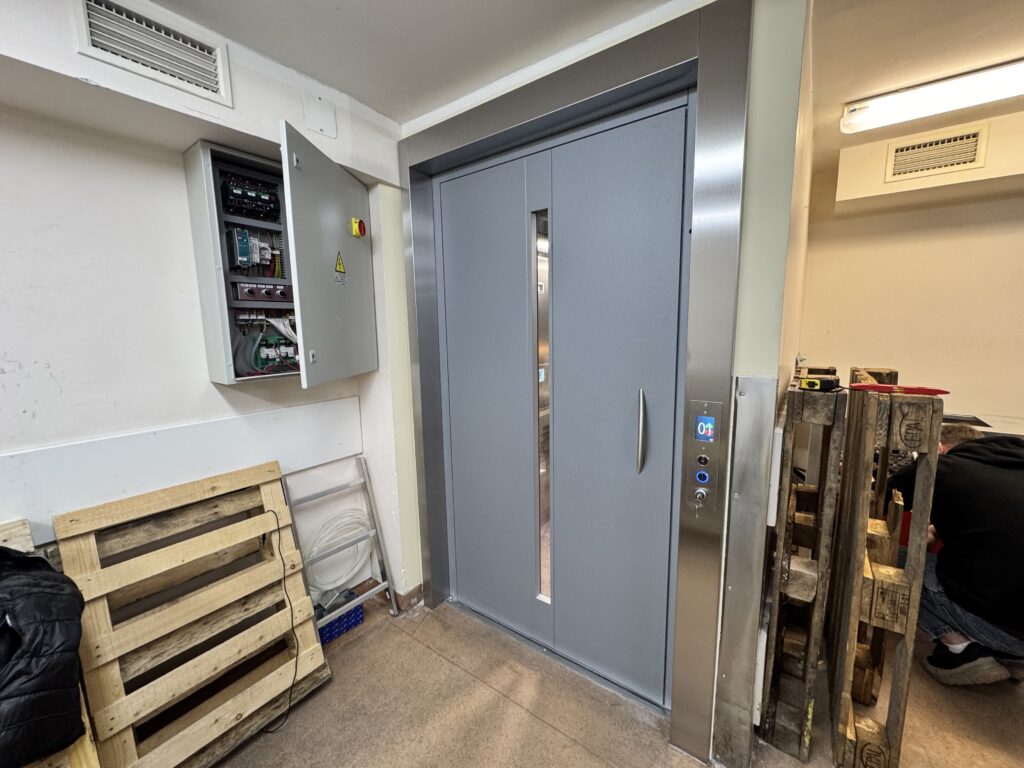

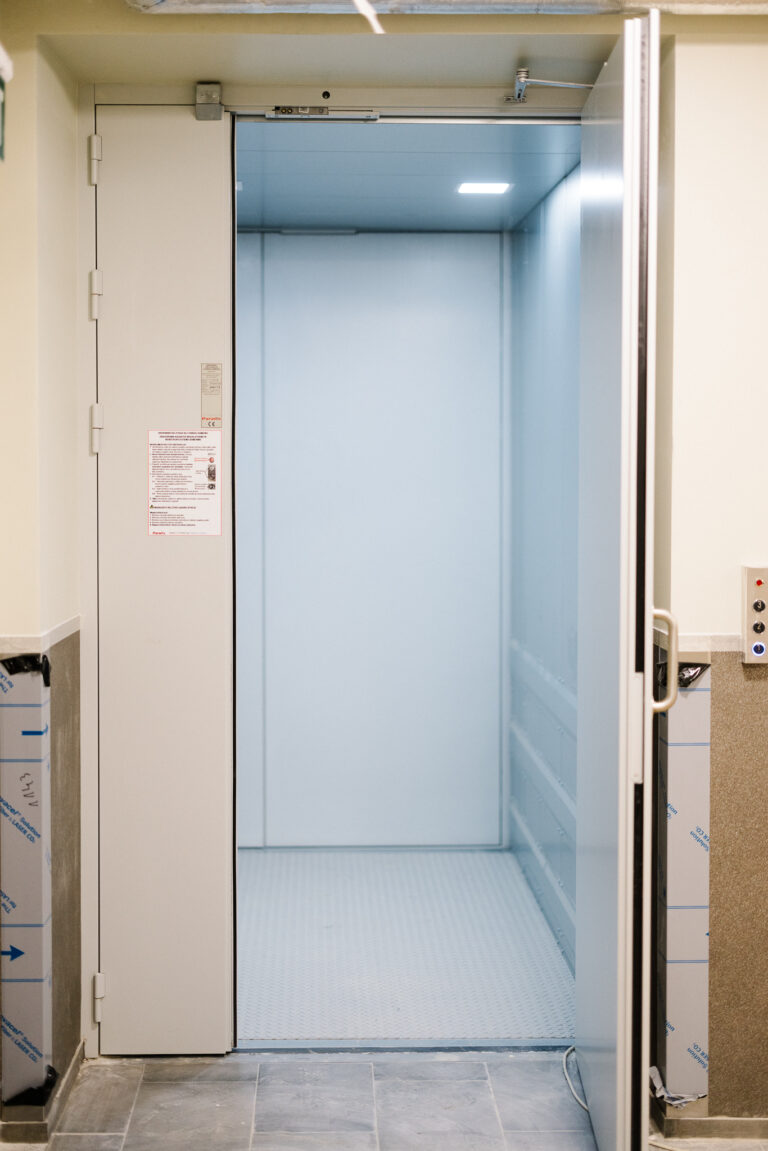

Available with swing doors, sliding doors with customizable dimensions, Paradis HS1 is suitable for all building layouts
04
With a minimal pit of 400 mm and headroom of 2400 mm, as well as flexible car dimensions, Paradis cargo is exceptionally well-suited for any existing structure

Do you have

questions?

Do you have

questions?

Technical specifications

Goods lift HS1
Travelling Hk, mmmax. 12000
ConfigurationHS1
Rated load, kg1000/1500
Platform width W, mm*1max 1900
Platform length L, mm*11400 - 3000
Headroom, mm*2Cabin height + 700
Pit depth, mm400
Shaft typeBrick / Concrete / Steel frame
Shaft inner dmensions*3Entrances
Shaft inner width, WHF, mmA / C / ACW+450
B / AB / BCW+390
Shaft inner length LHF, mmA / B / C / AB / BCL+160
AC / ABC
L+80
Rated power, kWMin 4
Number of stopsup to 5
Power supply400V 50Hz
ControlsHold to run
Doors
Door typeHinged doors
Cabin
Cabin typePartially enclosed cabin
Cabin height, mmUp to 2800
Floor materialPlywood / Chequered aluminium / Chequered stainless steel
Protection at cabin entranceLight curtain
Additional data
Floor leveling systemAutomatic re-levelling system

* 1 Design table must be used to select possible combination of platform dimensions in relation to nominal loads
* 2 Minimum headroom may be 2000mm in specific cases. Minimum Headroom possibility must be evaluated for individual project
* 3 Given dimensions may be altered for individual projects

HS1 HYDRAULIC GOODS LIFT DESIGN TABLE

Load Kg

Platform length L, mm

14001500160017001800190020002100220023002400250026002700280029003000

Platform width W, mm

60015001500150015001500150015001500150015001500150015001500150015001500
70015001500150015001500150015001500150015001500150015001500150015001500
80015001500150015001500150015001500150015001500150015001500150015001500
90015001500150015001500150015001500150015001500150015001500150015001500
100015001500150015001500150015001500150015001500150015001500150015001500
110015001500150015001500150015001500150015001500150015001500150015001500
120015001500150015001500150015001500150015001500150015001500150015001500
130015001500150015001500150015001500150015001500150015001500100010001000
140015001500150015001500150015001500150015001500150015001000100010001000
150015001500150015001500150015001500150010001000100010001000100010001000
16001000100010001000100010001000100010001000100010001000100010001000
17001000100010001000100010001000100010001000100010001000100010001000
180010001000100010001000100010001000100010001000100010001000
19001000100010001000100010001000100010001000100010001000
